1229L 12" Touchscreen Monitor (Discontinued August 2007)
Overview

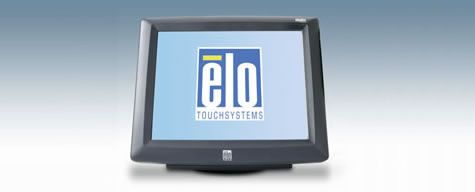

The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
- "Designed for touch" features such as a stable tilt base
- Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology, Surface Capacitive Technology or CarrollTouch Infrared Technology
- Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
- Optional rear-facing customer display
- Optional biometric fingerprint recognition device
- Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on base bottom for tabletop security
- Base removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
AccuTouch (Serial, Antiglare, Worldwide) - 839902-000
Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
Tamanho da diagonal
12,1'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
4:3
Área ativa
9.69" x 7.27" / 246 mm x 184.5 mm
Resolução
800 x 600 at 60 Hz
Outras resoluções suportadas
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzÂngulo de visão
Horizontal: ±65° or 130° total / Vertical: 50°/45° or 95° total
Número de cores
16.2 million with dithering (6 bit)
Brilho (típico)
LCD panel: 350 nits
AccuTouch: 287 nitsTempo de resposta (típico)
45 msec
Razão de contraste
450:1
Interface do touch
Serial
Visualização na tela (OSD)
OSD lockouts for power and user controls
Controles de usuário
OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
OSD languages: English, French, German, Spanish, Japanese
OSD disable/enable: power, OSD menuAuto falantes
Two watt/channel speakers located in display head
Formato da entrada de vídeo
RGB analog
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type
Consumo de energia (típico)
Monitor: 20 W typical, 25 W max.
VFD customer display: 3 W typical, 6 W max.
USB fingerprint reader: 0.5 W typical, 1 W max.
USB magnetic stripe reader: 0.5 W typical, 1 W max.
2 USB external ports power when loaded: 5 W typical, 7 W max.
Total with all possible accessories: 29 W typical, 40 W max.Fonte de alimentação
External brick
Output voltage/current: 12 VDC at 4.0 amps max.Tensão de entrada
100-240 VAC, 50-60 Hz
Frequência de entrada
Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz
Dimensões do monitor (com suporte)
13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm
Peso (sem embalagem)
11.9 lbs / 5.4 kg
Peso (embalado)
19.8 lbs / 9 kg
Temperatura de operação
0°C to 40°C
Temperatura de armazenamento
-20°C to 60°C
Umidade
Operating: 20-80%
Storage: 5-95%
noncondensingVedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Removable base
Optional stability plateOutras características
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacleGarantia
3 anos
Vida da lâmpada de contraluz
Min 50,000 hours to half brightness
Aprovações e declarações reguladoras
UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick
Cabos de força
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.Fonte de Alimentação Opcional
Elo p/n: E137360, available at additional cost.
Caneta stylus IntelliTouch opcional
D82064-000, available at additional cost.
Cabo de vídeo e touch
All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: C41696-000, available at additional cost.
