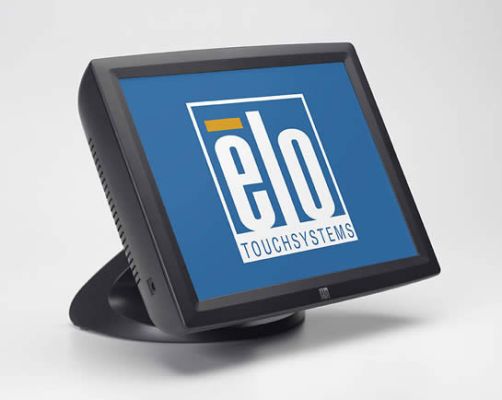

1520 15" Touchcomputer (Discontinued June 2011)
Overview
The Elo 1520 All-in-One Touchcomputer brings a new level of performance to graphic-intensive applications, such as patient bedside entertainment, retail digital signage, point-of-information and table-top gaming where high processing speed and advanced video graphics are needed. To meet the diverse computing needs required for these markets, the 1520 is available with the choice of two processors: the Intel® Core Duo 3.0 GHz or the Intel® Dual Core Atom™ 1.6Ghz, both with an advanced graphics chip set and multiple external ports to support a variety of configurations.
The 1520 expands the Elo family of reliable, multi-function touch solutions. The 1520 All-in-One Touchcomputer supports the popular Microsoft operating systems, including Windows XP and WEPOS, and is also available with no operating system offering maximum flexibility. A selection of industry-leading Elo touch technologies including Acoustic Pulse Recognition (APR), IntelliTouch® surface acoustic wave, and AccuTouch® 5-wire resistive make the 1520 All-in-One Touchcomputer a solutions-based system preferred for the rigors of public venues such as retail display units, customer loyalty systems, point of information systems, internet access sites, and digital signage as well as bedside entertainment and home control.
Other features
- "Designed for touch" from the ground-up; stable stand and adjustable tilt display - Elo quality and reliability
- Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements - Eliminate accidental damage when liquids are spilled
- Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts and for future spares
- Bright, high contrast - Improved screen readability
- Security lock receptacle - Provides fast, effective, and convenient security
- Excellent cable management and cables hidden from view - Eliminate accidental disconnection with a clean, professional look
- Multiple input/outputs - Accessible input/output ports for easy connection
- Ability to further customize internal components and external features - Designed to add highly customizable features to meet customers demanding requirements in a variety of settings
- 3-year warranty - Customer satisfaction and peace of mind
Especificações
-
Técnico
Modelos
AccuTouch (Antiglare) - E123764
AccuTouch (Antiglare) - E183562
AccuTouch (Antiglare) - E661901
IntelliTouch (Antiglare) - E459918
IntelliTouch (Antiglare) - E160617
IntelliTouch (Antiglare) - E760599Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque únicoProcessador
1520 Standard:
Intel 1.6GHz Atom Dual-Core 330,
1 MB L2 Cache,
533MHz System Bus
1520 Advanced:
Intel 3.0GHz Core 2 Duo E8400,
6 MB L2 Cache,
1333 MHz System BusBIOS
Intel BIOS
Memória (RAM)
1520 Standard:
1 GB DDR2 533 MHz SDRAM
(Expandable to 2 GB, available as a
custom order only)
1520 Advanced:
2 GB DDR2 667 MHz SDRAM
(Expandable to 4 GB, available as a
custom order only)Drive de disco rígido
1520 Standard:
1 x 2.5" SATA hard drive, 80 GB
1520 Advanced:
1 x 2.5" SATA hard drive, 160 GBChipset
1520 Standard:
Intel® 945GC Express Chipset and Intel® I/O Controller Hub 7 (ICH7)
1520 Advanced:
Intel Q45 Express Chipset and
Intel I/O Controller Hub 10 (ICH10DO)
Intel I/O Controller Hub 10 (ICH10DO)Tamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Controls (side): menu, up, down, select, power
Settings: Settings: contrast, brightness, H/V position, RGB (color temperature), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsProporção da tela
4:3
Área ativa
12.0" x 9.0" / 304 mm x 228 mm
Resolução
1024 × 768 at 60 Hz
Outras resoluções suportadas
1024 × 768 at 60, 65 Hz, 70 or 75 Hz
832 × 624 at 75 Hz
800 × 600 at 56, 60, 72 or 75 Hz
720 × 400 at 70 Hz
640 × 480 at 60, 66 Hz, 72 or 75 Hz
640 × 350 at 70 HzNúmero de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 230 nitsTempo de resposta (típico)
14.5 msec
Razão de contraste
500:1
Ângulo de visão
Horizontal: ±70° or 140° total / Vertical: 60/55° or 115° total
Portas USB
1520 Standard: 4 x USB 2.0
1520 Advanced: 6 x USB 2.0
Porta serial
1520 Standard: 1 x RS-232 Serial
Porta Ethernet
1 x LAN RJ45 (Gigabit)
Vídeo de saída adicional
1520 Advanced: 1 x DVI-D
Portas de áudio
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic in
6 channel HD audioAuto falantes
Two-watt/channel speakers in display head
sistema operacional
Sem SO
Windows XP Professional Service Pack 2
Windows Embedded for Point of Service (WEPOS)Idiomas
Windows XP – 24 Language groups; WEPOS - 5 language groups
Fonte de alimentação
Type: External DC (power brick)
Tensão de entrada
Computer: 12 VDC
Power Brick: 100-240 VAC, 50-60 HzConsumo de energia (típico)
1520 Standard:
100W (12V at 8.33A max)
1520 Advanced:
150W (12V at 12.5A max)Dimensões do Touchcomputer com o pedestal
13.9" x 11.7" x 11.1" / 354mm x 296mm x 282mm
Dimensões do Touchcomputer sem o pedestal
13.9" x 11.1" x 3.4" / 354mm x 282mm x 87mm
Dimensões da Caixa
17.5" x 13.8" x 15.2" / 445 mm x 352 mm x 386 mm
Peso (sem o pedestal)
1520 Standard: 15.0 lbs / 6.8 kg
1520 Advanced: 16.0 lbs / 7.3 kgPeso (sem embalagem)
1520 Standard: 17.0 lbs / 7.7 kg
1520 Advanced: 18.0 lbs / 8.2 kgPeso (embalado)
1520 Standard: 23.0 lbs / 10.4 kg
1520 Advanced: 24.0 lbs / 10.9 kgTemperatura de operação
0°C to 35°C / 32°F to 95°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 10%-90%Aprovações e declarações reguladoras
UL/cUL (UL60950-1/CSA C22.2 No. 60950-1-03), FCC Class A
Elo Declarations: RoHS, WEEE, CERelógio de tempo real
Bateria de lítio-ion
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Threaded holes on bottom of base for mountingGarantia
3 anos
Vedado
Touchscreen sealed to bezel (IntelliTouch)
Touchscreen sealed to sub-bezel (AccuTouch, APR)
Touchscreen sealed to LCD (all)Cabos de força
North American power cable and a European power cable are included
Outras características
Accessible HDD
Removable base with 75mm VESA mounting
Threaded holes on bottom of base for secure mounting
Kensington security lockCaneta stylus IntelliTouch opcional
D82064-000, available at additional cost
Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses
conforming to ISO/ANSI standards. The MSR has foreign language capability. The credit card is read by
sliding the credit card forward or backward through the MSR. The MSR is powered from the USB port; no
external power is needed. The MSR features are:
- Reads up to 3 tracks of information
- Bidirectional swipe reading
- Superior reading of high jitter, scratched, and worn
MagStripe cards
- Reliable for over 1,000,000 card swipes
- Reads ISO7811, AAMVA, and most other card data formats
- PC software makes configuration changes easy
- Swipe speeds from 3 to 60 inches per second
- Interfaces: USB-KB and USB-HID
- Fully supports USB 2.0Suportes, Montarias e Kits
Magnetic Stripe Reader - Elo P/N: E201212
