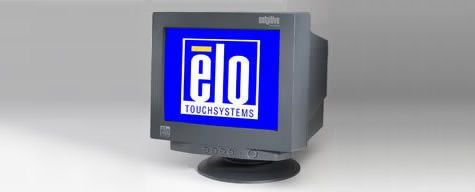

1526C 15" CRT Touchmonitor (Discontinued December 2008)
Overview
For delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch® ZB touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.
Features
- Our lowest cost touchmonitor
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original picture quality
- Digital on-screen display (OSD) with lockout function for public use
- Power Save function
- Rigid (removable) base
- Innovative touchscreen sealing
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
IntelliTouch ZB (Antireflective, Worldwide) - E833965
Cor do Monitor
Cinza escuro
Tecnologia do Touch
SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - toque único
Tamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
4:3
Área ativa
15.2" / 385 mm
Resolução
800 x 600 at 85 Hz
Outras resoluções suportadas
1024 x 768 at 60, 70, 75, or 85 Hz
800 x 600 at 60, 72, 75, or 85 Hz
640 x 480 at 60, 72, 75, or 85 HzNúmero de cores
16.7 milhões
Dot Pitch
0.28 mm
Razão de contraste
300:1
Interface do touch
Dual serial/USB
Visualização na tela (OSD)
Digital OSD with lockout capability
Video Bandwidth
67 MHz
Formato da entrada de vídeo
Analog (no proprietary video card needed)
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin (female)
Consumo de energia (típico)
70 W max.
Fonte de alimentação
90-264 VAC, 50-60 Hz
Frequência de entrada
Horizontal: 30-70 kHz
Vertical: 50-160 HzPeso (sem o pedestal)
14.3" x 12.9" x 15.2" / 362 mm x 328 mm x 385 mm
Peso (sem embalagem)
29 lbs / 13.0 kg
Peso (embalado)
33 lbs / 15.0 kg
Temperatura de operação
0°C to 40°C
Temperatura de armazenamento
-40°C to 60°C
Umidade
Operating: 10% to 90%
Storage: 10% to 90%
noncondensingMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
Rigid (removable) base
Outras características
VESA DDC 1/2 B Plug and Play
Garantia
2 anos
Aprovações e declarações reguladoras
UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)
Cabos de força
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000
