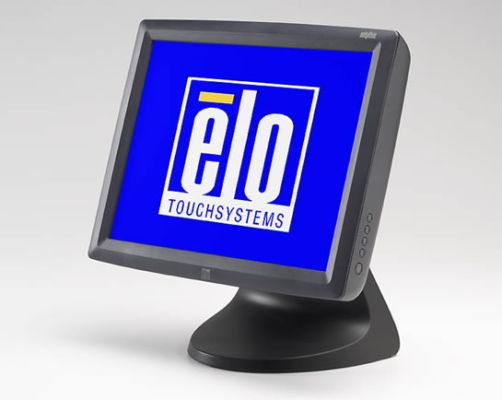

1528L 15" Touchscreen Monitor (Discontinued March 2015)
Overview
The 1528L 15" LCD medical desktop touchmonitor is an integrated solution for medical equipment OEMs and healthcare system integrators seeking a reliable, durable and cost-effective touchmonitor. Typical applications include patient self-service, nurse station and medical OEMs. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchmonitor’s innovative IPX1 enclosure design, coupled with the addition of a special gasket, sheds water and resists liquid drops and spills.
The 1528L is available with IntelliTouch surface wave touch technology or AccuTouch five-wire resistive touch technology. AccuTouch is the most widely used technology for medical equipment applications. AccuTouch touchscreens can be activated with a gloved hand or any stylus – an important feature for medical applications.
Other features.
- IPX1 drip-proof enclosure
- Long lasting product cycle–enclosure controlled by Elo specifications
- Touch can be activated with gloved hands
- Touchscreen sealed from the factory to resist against dirt and dust
- Analog and digital (DVI-D) video inputs
- Multiple mounting options including VESA mounting option
- On screen display controls on the side rather than the front, plus lockout function for public use
- Built in speakers located in the display head
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface-Wave Technology
- Combination controller (both Serial and USB)
Especificações
-
Técnico
Modelos
AccuTouch (Antiglare) - E606958 (Americas, EMEA)
AccuTouch (Antiglare) - E338457 (Americas, EMEA)
IntelliTouch (Antiglare) - E491199 (Americas)
IntelliTouch (Antiglare) - E372869 (Americas)Cor do Monitor

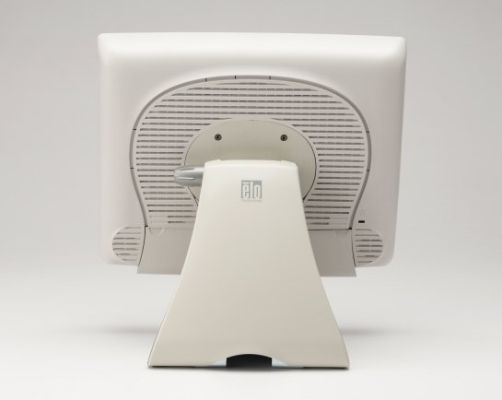

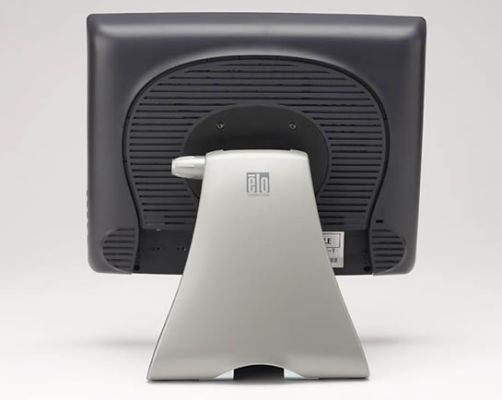

Dark Gray or Beige
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque únicoTamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
4:3
Área ativa
12.0" x 9.0" / 304mm x 228mm
Resolução
1024 x 768 at 60 Hz
Outras resoluções suportadas
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzÂngulo de visão
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
Número de cores
16.2 milhões
Brilho (típico)
LCD panel: 350 nits
AccuTouch: 287 nits
IntelliTouch: 322 nitsTempo de resposta (típico)
8 msec
Razão de contraste
400:1
Interface do touch
Dual serial/USB
Visualização na tela (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast , brightness, V-position, H-position, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controlsAuto falantes
Two watt/channel speakers located in display head
Formato da entrada de vídeo
Analog VGA, DVI-D

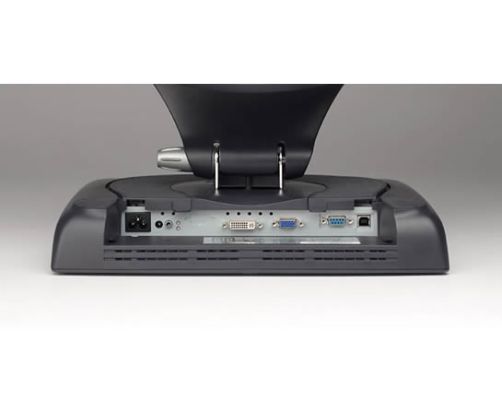

Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type, DVI-D connector
Consumo de energia (típico)
48W
Fonte de alimentação
External DC (power brick); Hospital-grade power cord for US/Canada; European power cord.
Tensão de entrada
AC: 100–240 VAC, 50/60 Hz; DC: 12.0 V±0.75 V
Conector de entrada
AC: IEC 60320 C6 / DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length)
Frequência de entrada
Horizontal: 31–60 kHz / Vertical: 56–75 Hz
Dimensões do monitor (com suporte)
14.0" x 13.8" x 8.0" / 355mm x 350mm x 203mm
Dimensões da Caixa
18.50" x 10.43" x 18.11" / 470mm x 265mm x 460mm
Peso (sem o pedestal)
10.8 lbs / 4.8 kg
Peso (sem embalagem)
With power adapter: 16.1 lbs / 8.3 kg; Without power adapter: 15.3 lbs / 6.9 kg
Peso (embalado)
22.2 lbs / 10.1 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 5%-95%
noncondensingVedado
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de suporte
Tilt, remove
Opções de montagem
75 mm VESA mount
Outras características
Energy save mode (less than 6 watts)
2 stage DPMS
VESA DDC, Plug & Play
Security lock receptacleGarantia
3 anos
Aprovações e declarações reguladoras
FCC, IC, C-Tick Class B, UL, cUL Medical UL 60601-1(formerly 2601-1), C22.2 No. 601.1 (Drip-proof IPX1, AccuTouch only). Includes EMC requirements EN, IEC 60601-1-2
Cabo de alimentação AC
AC power cables for power brick are also available at additional cost:
United States - Elo p/n: E450339
Europe - Elo p/n: E690013
United Kingdom - Elo p/n: E235317Fonte de Alimentação Opcional
Replacement Medical Grade Power Supply Brick and Cable Elo p/n: E539821, available at additional cost.
Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
Cabo de vídeo e touch
Detachable touch and video cables are included.
