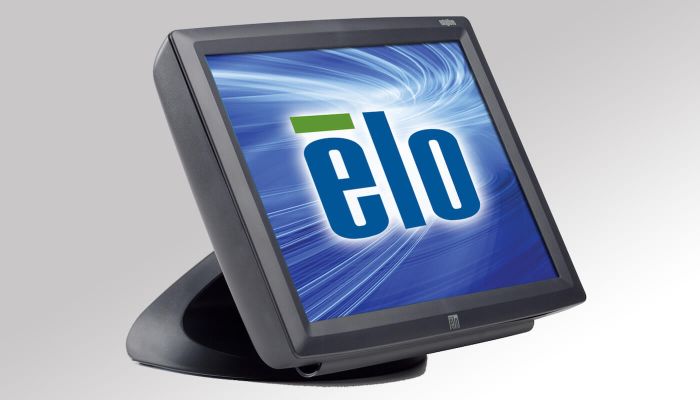

1529L 15" Touchcomputer (Discontinued April 2008)
Overview
The 1529L touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions. The silent, fanless 1529L integrates an all-in-one touchcomputer within the footprint of a 15" LCD monitor. The retail-rugged 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short stable tilt base that is removable or reversible for wall mounting, and a choice of Elo touch technology as well as color. The Microsoft Windows 2000 and XP Professional versions of the 1529L touchcomputer include a hard drive; the Windows XP Embedded versions have solid-state components with no moving parts. Options include a magnetic stripe reader (MSR) and rear-facing customer display. The 1529L offers a wide range of connectivity, including USB and legacy serial ports. Applications for the new all-in-one touchcomputer include loyalty systems, kiosk information systems, POS, casino management, cash systems, and Internet access points such as those for Web surfing and hotel reservations. The 1529L is also available without the integrated computer
Features
- Space saving, integrated, all-in-one touchcomputer with the footprint of a standard 15" LCD display
- Silent, fanless design
- Available as a solid-state embedded system or with an integrated hard drive
- Choice of Microsoft Windows XP Professional, Microsoft Windows XP Embedded, or Microsoft Windows 2000 (not available in Europe) operating systems
- Functions as desktop or wall-mountable system
- Optional integrated MSR and/or rear-facing customer display
- Available with AccuTouch® Five-Wire Resistive, CarrollTouch Infrared or IntelliTouch® Surface-Wave touch technology
- "Designed for touch" from the ground-up; stable tilt base; cables hidden from user's view; controls on the side rather than the front, plus lockout function for public use
- Base removable, plus VESA mounting option
- Connectivity includes two serial, four USB 1.1, Ethernet, PCMCIA, PS/2 mouse, and keyboard ports
- Built-in speakers located in display head
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
AccuTouch (Antiglare, Worldwide) - E997301
AccuTouch (Antiglare, Worldwide) - E812229
AccuTouch (Antiglare, Worldwide) - E804814
AccuTouch (Antiglare, Worldwide) - E145229
AccuTouch (Antiglare, Worldwide) - E934301
AccuTouch (Antiglare, Worldwide) - E071845
CarrollTouch (Antiglare, Worldwide) - E998829
CarrollTouch (Antiglare, Worldwide) - E700965
IntelliTouch (Antiglare, Worldwide) - E897594
IntelliTouch (Antiglare, Worldwide) - E910583
IntelliTouch (Antiglare, Worldwide) - E770939
IntelliTouch (Antiglare, Worldwide) - E763179
IntelliTouch (Antiglare, Worldwide) - E202923
IntelliTouch (Antiglare, Worldwide) - E723341
IntelliTouch (Antiglare, Worldwide) - E074661
IntelliTouch (Antiglare, Worldwide) - E224159
IntelliTouch (Antiglare, Worldwide) - E782747
IntelliTouch (Antiglare, Worldwide) - E624617
IntelliTouch (Antiglare, Worldwide) - E037419Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
CarrollTouch Infrared TechnologyProcessador
Via Eden 1 GHz CPU or equivalent
Memória (RAM)
512 MB
Drive de disco rígido
XP/2000: 30 GB HDD (minimum)
XP Embedded: Optional 30 GB HDD (minimum) or 1 GB Compact FlashTamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
4:3
Área ativa
11.98" x 8.98" / 304.1 mm x 228 mm
Resolução
1024 x 768 at 60 Hz
Número de cores
16.2 million with dithering (6 bit)
Brilho (típico)
LCD panel: 350 nits
AccuTouch: 287 nits
CarrollTouch: 322 nits
IntelliTouch: 322 nitsTempo de resposta (típico)
25 msec
Razão de contraste
400:1
Ângulo de visão
Horizontal: ±75° or 150° total / Vertical: 50°/75° or 125° total
Portas USB
Four external
Porta serial
Two external
Porta Ethernet
TCP/IP 10/100 Base-T RJ45 port
Wireless
Capable through PCMCIA
Auto falantes
Two-watt/channel speakers in display head
sistema operacional
Windows XP Professional 3
Windows XP Embedded 4
Windows 2000 (not available in Europe)Idiomas
Windows 7 - 35 grupos de idiomas
Fonte de alimentação
Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 V at 5.0 amps max.Tensão de entrada
100-240 VAC, 50-60 Hz
Consumo de energia (típico)
30 W
Dimensões do Touchcomputer com o pedestal
13.99" x 11.27" x 10.44" / 355 mm x 286 mm x 265 mm
Peso (sem embalagem)
17.38 lbs / 7.88 kg
Peso (embalado)
22.66 lbs / 10.26 kg
Temperatura de operação
0°C to 35°C
Temperatura de armazenamento
-20°C to 60°C
Umidade
Operating: 20%-80%
Storage: 5%-95%
noncondensingAprovações e declarações reguladoras
UL/cUL (recognized component), FCC, TÜV-GS, CE, VCCI, C-Tick
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Removable baseGarantia
1 ano
Vedado
Touchscreen sealed to bezel and LCD
Cabos de força
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317
Outras características
Energy save mode (less than 2 watts)
Touchscreen sealed to bezel and LCD
Security lock receptacleOpções de upgrade
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
Modelos de cabo de força por região para E-Series
América do Norte - Elo P/N: E042259
Suportes, Montarias e Kits
Short Desktop stand (Dark gray) - Elo p/n: E252977
Tall Desktop stand (Dark gray) - Elo p/n: E930466
Short Desktop stand (Beige) - Elo p/n: E819036
Tall Desktop stand (Beige) - Elo p/n: E024520
1529L VESA Plate – Elo p/n: E295293
