1529L 15" Touchscreen Monitor (Discontinued January 2008)
Overview

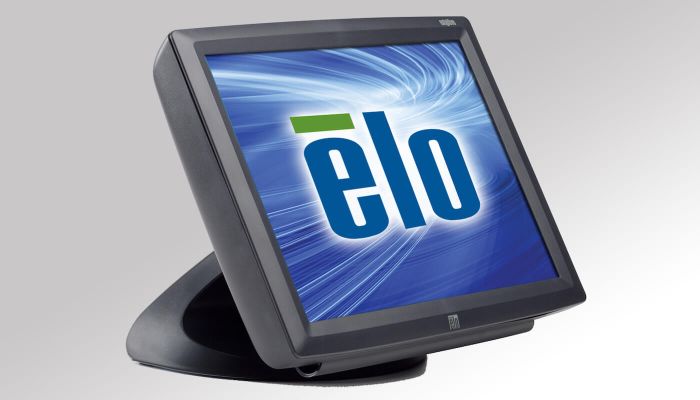

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions and is now available with the new breakthrough Elo touch technology, Acoustic Pulse Recognition. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a 2 x 20 vacuum fluorescent rear-facing customer display (VFD). The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
- "Designed for touch" features such as a stable tilt base
- Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch® Surface-Wave Technology, CarrollTouch Infrared Technology, Surface Capacitive, or the newest Elo touch technology, Acoustic Pulse Recognition.
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Optional 20x2 USB vacuum fluorescent display (VFD) rear-facing customer display
- Optional biometric fingerprint recognition device
- USB hub or dual serial/USB interface available on certain configurations
- Choice of gray or beige finish
- Choice of short, tall, or no monitor stand. No stand version also omits the logo.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on base bottom for tabletop security
- Base removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E700641
AccuTouch (Dual Serial/USB, Antiglare, Worldwide) - F46991-000Cor do Monitor
Dark Gray or Beige
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
Reconhecimento de Pulso Acústico - Single TouchTamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
4:3
Área ativa
11.98" x 8.98" / 304 mm x 228 mm
Resolução
1024 x 768
Outras resoluções suportadas
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzÂngulo de visão
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
Número de cores
16.2 million with dithering (8 bit)
Brilho (típico)
LCD panel: 350 nits
AccuTouch: 287 nits
Acoustic Pulse Recognition: 322 nitsTempo de resposta (típico)
25 msec
Razão de contraste
400:1
Touch Interfaces
USB: E700641
Dual Serial/USB: F46991-000Visualização na tela (OSD)
OSD lockouts for power and user controls
Controles de usuário
OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select, OSD disable/enable: power, OSD menu
OSD language: English, French, German, Spanish, JapaneseAuto falantes
Two watt/channel speakers located in display head
Formato da entrada de vídeo
RGB analog; DVI-D
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type; DVI-D connector
Consumo de energia (típico)
20 W
Fonte de alimentação
Type: AC/DC input internal power supply
Power: 50 W max.; only AC power cable supplied; 12V power supply optionalTensão de entrada
AC: 0-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
Frequência de entrada
Horizontal: 31-60 kHz / Vertical: 56-75 Hz
Dimensões do monitor (com suporte)
Short Stand: 13.99" x 11.27" x 10.44" / 355mm x 286mm x 265mm
Peso (sem embalagem)
14.44 lbs / 6.55 kg
Peso (embalado)
21.16 lbs / 9.60 kg
Temperatura de operação
0°C to 40°C
Temperatura de armazenamento
-20°C to 60°C
Umidade
Operating: 20-80%
Storage: 5-95%
noncondensingVedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Removable baseOutras características
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacleGarantia
3 anos
Vida da lâmpada de contraluz
Min 40,000 hours to half brightness
Aprovações e declarações reguladoras
UL, cUL, FCC-A, TÜV-GS, CE, VCCI, C-Tick
Cabo de alimentação AC
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.
AC power cables for power brick are also available at additional cost:
United States: Elo P/N: E042259
Europe: Elo P/N: E690013
United Kingdom: Elo P/N: E235317Fonte de Alimentação Opcional
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E785134, is available at additional cost.
Cabo de vídeo e touch
All appropriate cables are included and are detachable.
