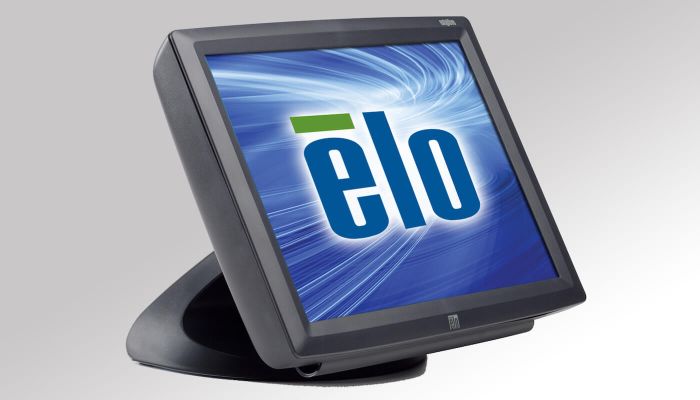

1529L 15" Touchscreen Monitor (Discontinued May 2006)
Como Comprar

Overview

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a choice of either a 2 x 20 vacuum fluorescent rear-facing customer display (VFD) or the first consumer-touchable 12.1" rear-facing customer display. The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.

Other features.
  • Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
  • "Designed for touch" features such as a stable tilt base
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, or Surface Capacitive.
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Optional rear-facing customer display available as either a 20x2 USB vacuum fluorescent display (VFD) or a 12.1" LCD monitor with or without touch.
  • Optional biometric fingerprint recognition device
  • USB hub or dual serial/USB interface available on certain configurations
  • Choice of gray or beige finish,
  • Choice of short, tall, or no monitor stand. No stand version also omits the logo.
  • Single power supply for all optional devices
  • Cables hidden from user's view
  • Built-in speakers located in display head
  • Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
  • Mounting holes on base bottom for tabletop security
  • Base removable, VESA mounting option
  • Controls on the side rather than the front, plus lockout function for public use
  • Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
  • Diagnostic LEDs for touch and video
  • Long-lasting product cycle
  • Worldwide agency approvals

Especificações

  • Técnico

    Modelos

    Rear-Facing Customer Display (12.1" LCD):
    IntelliTouch (Antiglare, Worldwide) - C20438-000
    IntelliTouch (Antiglare, Worldwide) - C42629-000

    Rear-Facing Customer Display (12.1" LCD), Magnetic Stripe Reader (MSR):
    IntelliTouch (Antiglare, Worldwide) - C20438-000
    IntelliTouch (Antiglare, Worldwide) - C42629-000
    AccuTouch (Antiglare, Worldwide) - F09152-000
    AccuTouch (Antiglare, Worldwide) - E34949-000
    CarrollTouch (Antiglare, Worldwide) - F39300-000
    CarrollTouch (Antiglare, Worldwide) - D29715-000
    CarrollTouch (Antiglare, Worldwide) - D38020-000
    CarrollTouch (Antiglare, Worldwide) - E55136-000
    Acoustic Pulse (Antiglare, Worldwide) - E700641
    IntelliTouch (Antiglare, Worldwide) - C98615-000
    IntelliTouch (Antiglare, Worldwide) - A97407-000
    IntelliTouch (Antiglare, Worldwide) - E36679-000
    IntelliTouch (Antiglare, Worldwide) - C12144-000

    Cor do Monitor

    Dark Gray or Beige

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
    Reconhecimento de Pulso Acústico - Single Touch
    Surface Capacitive (SCAP) - Single Touch
    CarrollTouch Infrared Technology

    Tamanho da diagonal

    15'' diagonais, LCD (LED) TFT matriz ativa

    Proporção da tela

    4:3

    Área ativa

    11.98" x 8.98" / 304mm x 228mm

    Resolução

    1024 x 768

    Outras resoluções suportadas

    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Ângulo de visão

    Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total

    Número de cores

    16.2 million with dithering (6 bit)

    Brilho (típico)

    LCD panel: 350 nits
    AccuTouch: 287 nits
    CarrollTouch: 322 nits
    IntelliTouch: 322 nits
    Surface Capacitive: 294 nits

    Tempo de resposta (típico)

    25 msec

    Razão de contraste

    400:1

    Formato da entrada de vídeo

    RGB analog; DVI-D

    Entrada do conector dos sinais de vídeo

    Mini D-Sub 15-Pin VGA type; DVI-D connector

    Interface do touch

    USB hub: C20438-000, C42629-000, E74257-000, E02656-000, F09152-000, E34949-000, F39300-000, D29715-000, D38020-000, E55136-000, C98615-000, A97407-000, E36679-000, C12144-000
    USB: E700641

    Fonte de alimentação

    AC/DC input internal power supply; Power: 50 W max.; only AC power cable supplied; 12V power supply optional

    Tensão de entrada

    AC: 85-265 VAC, 47-63 Hz.; DC: 12.0V ± 0.75V

    Frequência de entrada

    Horizontal: 31-60 kHz / Vertical: 56-75 Hz

    Consumo de energia (típico)

    30 W

    Auto falantes

    Two watt/channel speakers located in display head

    Visualização na tela (OSD)

    OSD lockouts for power and user controls

    Controles de usuário

    OSD control menu: menu, up, down, select, power
    OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
    OSD languages: English, French, German, Spanish, Japanese
    OSD disable/enable: power, OSD menu

    Dimensões do monitor (com suporte)

    13.99" x 11.27" x 10.44" / 355 mm x 286 mm x 265 mm

    Peso (sem embalagem)

    14.44 lb / 6.55 kg

    Peso (embalado)

    21.16 lb / 9.60 kg

    Temperatura de operação

    0°C to 40°C

    Temperatura de armazenamento

    -20°C to 60°C

    Umidade

    Operating: 20-80%; Storage: 5-95%; noncondensing

    Opções de montagem

    75 mm VESA mount
    Removable base

    Outras características

    Energy save mode (less than 2 watts)
    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Vida da lâmpada de contraluz

    Min 40,000 hours to half brightness

    Garantia

    3 anos

    Aprovações e declarações reguladoras

    UL, cUL, FCC-A, TÜV-GS, CE, VCCI, C-Tick

    Cabo de alimentação AC

    North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n - E540272.

    Fonte de Alimentação Opcional

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E785134, is available at additional cost.

    Cabo de vídeo e touch

    All appropriate cables are included and are detachable.

    Suportes, Montarias e Kits

    Short Desktop stand (Dark gray) - Elo p/n: E252977
    1529L VESA Plate – Elo p/n: E295293
