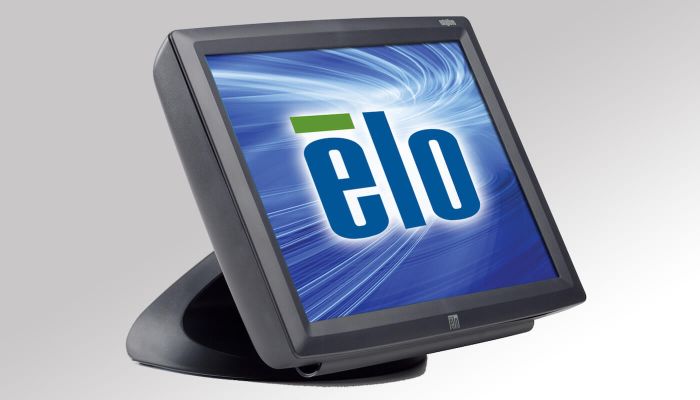

1529L 15" Touchscreen Monitor (Discontinued October 2012)

Especificações

• Técnico

  ---

  Modelos

  AccuTouch (USB, Antiglare, Worldwide) - E564135
  AccuTouch (USB, Antiglare, Worldwide) - E580588
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E353946
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E680845
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E700641
  Acoustic Pulse Recognition (USB, Antiglare, Worldwide) - E700641
  CarrollTouch (Serial/USB, Antiglare, Worldwide) - E392726

  Cor do Monitor

  Dark Gray or Beige

  Tecnologia do Touch

  Resistivo de 5 fios (AccuTouch®) - toque único
  Reconhecimento de Pulso Acústico - Single Touch
  CarrollTouch Infrared Technology

  Tamanho da diagonal

  15'' diagonais, LCD (LED) TFT matriz ativa

  Proporção da tela

  4:3

  Área ativa

  12.0" x 9.0" / 304 mm x 228 mm

  Resolução

  1024 x 768 at 60 Hz

  Outras resoluções suportadas

  1024 x 768 at 60, 65, 70 or 75 Hz
  832 x 624 at 75 Hz
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  720 x 350 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Ângulo de visão

  Horizontal: ±70° or 140° total / Vertical: ±60° or 120° total

  Número de cores

  16.2 milhões

  Brilho (típico)

  LCD panel: 350 nits
  AccuTouch: 280 nits
  Acoustic Pulse Recognition: 322 nits
  CarrollTouch: 322 nits

  Tempo de resposta (típico)

  12 msec

  Razão de contraste

  400:1

  Touch Interfaces

  USB: E564135, E580588, E353946, E680845, E700641, E700641
  Serial/USB: E392726


  Visualização na tela (OSD)

  Controls (side): menu, up, down, select, power
  Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
  Languages: English, French, German, Spanish, Japanese
  Lockouts: power, user controls

  Auto falantes

  Two watt/channel speakers located in display head

  Formato da entrada de vídeo

  Analog VGA, DVI-D

  Entrada do conector dos sinais de vídeo

  Mini D-Sub 15-Pin VGA type, DVI-D connector

  Consumo de energia (típico)

  Monitor: 20 W
  USB magnetic stripe reader: 0.5 W
  2 USB external ports power when loaded: 5 W
  Total with all possible accessories: 31 W

  Fonte de alimentação

  Internal AC, Optional external DC (power brick)

  Tensão de entrada

  AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

  Conector de entrada

  AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  Frequência de entrada

  Horizontal: 31-60 kHz / Vertical: 56-75 Hz

  Dimensões do monitor (com suporte)

  14.0" x 11.3" x 10.4" / 355mm x 286mm x 265mm

  Dimensões da Caixa

  Tall stand: 21.65" x 19.69" x 11.02" / 550mm x 500mm x 280mm
  Short stand with scanner: 21.65" x 13.58" x 16.73" / 550mm x 345mm x 425mm
  Short stand: 19.09" x 13.00" x 16.73" / 485mm x 330mm x 425mm

  Peso (com o pedestal)

  Short stand: 14.4 lbs / 6.6 kg

  Peso (sem o pedestal)

  10.6 lbs / 4.8 kg

  Peso embalado (com o pedestal)

  Short stand: 21.2 lbs / 9.6 kg

  Temperatura de operação

  0°C to 40°C / 32°F to 104°F

  Temperatura de armazenamento

  -20°C to 60°C / -4°F to 140°F

  Umidade

  Operating: 20-80%
  Storage: 5-95%
  noncondensing

  Vedado

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF - Tempo médio entre falhas

  50.000 horas demonstradas

  Opções de suporte

  Tilt, removable, reverse (wall mount), short or tall stand

  Opções de montagem

  75 mm VESA mount

  Outras características

  Energy save mode (less than 2 watts)
  2 stage DPMS
  VESA DDC Plug and Play
  Security lock receptacle
  Two external USB ports

  Garantia

  3 anos

  Aprovações e declarações reguladoras

  UL, cUL, FCC-A, Semko, CE, VCCI, C-Tick

  Cabo de alimentação AC

  North American and European AC power cables are included.

  For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.

  AC power cables for power brick are also available at additional cost:
  United States: Elo P/N: E042259
  Europe: Elo P/N: E690013
  United Kingdom: Elo P/N: E235317

  Fonte de Alimentação Opcional

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.

  Optional Acoustic Pulse Recognition (APR) Stylus Pen

  E963860, available at additional cost.

  Cabo de vídeo e touch

  All appropriate cables are included and are detachable.

  Suportes, Montarias e Kits

  Short Desktop stand (Dark gray) - Elo p/n: E252977
  Tall Desktop stand (Dark gray) - Elo p/n: E930466
  Short Desktop stand (Beige) - Elo p/n: E819036
  Tall Desktop stand (Beige) - Elo p/n: E024520
  1529L VESA Plate – Elo p/n: E295293
