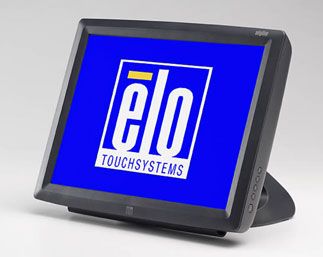

15A1 15" Touchcomputer (Discontinued April 2010)
Overview
The 15A1 15" LCD all-in-one touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions that can meet the requirements of any systems integrator, OEM or value-added reseller. Retail-rugged, the 15A1 features a spill-resistant sealing, a stable tilt stand that is removable or reversible for wall mounting, a VESA mounting option, cables hidden from user view, and side controls with lockout for public use.
Touch options include a choice of AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave, CarrollTouch infrared or the innovative Acoustic Pulse Recognition (APR). Additional options include a three-track magnetic stripe reader (MSR) and rear-facing customer display. Operating system options support Microsoft® Windows® XP Professional Service Pack 2 and Microsoft Windows Embedded for Point of Service (WEPOS).
The silent, fanless design of the 15A1, and its compact integrated peripherals, make this touchcomputer an ideal choice for point-of-sale, point-of-service, loyalty systems, kiosk information systems, medical and light industrial, airport security, home control, and Internet access points.
Features
- Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 15" LCD display, Combining processing with touchscreen to fit virtually anywhere
- Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529L based on Passmark Benchmark
- Available with IntelliTouch surface wave, AccuTouch five-wire resistive, Acoustic Pulse Recognition, or CarrollTouch infrared touch technology - Choice of touch technology to fit a wide range of applications
- Touchscreen sealed from the factory - Resists dirt, dust & liquid intrusion
- "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting - Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options to complement store layout and customer traffic
- USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
- Dual video display capability - Allows attachment of a second touch screen display for digital signage, Scalar support for 800X600, 1024X768 and native 1280X1024 for running legacy applications
- Sensible line of point-of-service options - Optional peripherals include: three-track magnetic stripe reader (MSR) for credit, ID and loyalty card transactions; customer-facing display to verify those transactions
- Windows XP Professional or WEPOS operating system support - Increases software and peripheral choices offering versatility and compatibility
- On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
- Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
- Accessible hard drive - For upgrades or repairs
- Long product life-cycle - Peace of mind that Elo touchcomputers will be available throughout all phases of project rollouts and when future spares are needed
- Same sleek look and feel as our 1529 family of products - Minimum impact to existing installations
Especificações
-
Técnico
Modelos
AccuTouch (Antiglare) - E287090
AccuTouch (Antiglare) - E854663
AccuTouch (Antiglare) - E811955
AccuTouch (Antiglare) - E878086
AccuTouch (Antiglare) - E714654
IntelliTouch (Antiglare) - E302730
IntelliTouch (Antiglare) - E840185
IntelliTouch (Antiglare) - E227162Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque únicoProcessador
Intel Celeron M 1GHz CPU
BIOS
ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL
Memória (RAM)
512 MB Standard (expandable up to 2 GB AccuTouch and IntelliTouch only)
Drive de disco rígido
1 x 2.5" 80 GB SATA hard drive
Armazenamento
80 GB
Chipset
Intel 915GME/ICH6
Tamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Controls (side): menu, up, down, select, power
Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
Languages: English, French, Italian, German, Spanish
Lockouts: all controlsProporção da tela
4:3
Área ativa
12.0" x 9.0" / 304 mm x 228 mm
Resolução
1024 x 768 at 60 Hz
Outras resoluções suportadas
800 x 600
Número de cores
16.2 milhões
Brilho (típico)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nitsTempo de resposta (típico)
14.5 msec
Razão de contraste
500:1
Ângulo de visão
Horizontal: ±70° or 140° total / Vertical: 60/55° or 115° total
Portas USB
4 x USB self powered 2.0
1 (of 4) port is 12V powered USB (1.5A) for POS peripheralsPorta serial
2 x RS-232 serial (RJ45, 8 position)
COM2 is RS-232, RS-422 and RS-485 selectablePorta Ethernet
1 x LAN RJ45
Porta para gaveta
1 x cash drawer (RJ11, 6 position)
Portas de áudio
1 x 3.5 mm audio-out
1 x 3.5 mm mic-inAuto falantes
Two-watt/channel speakers in display head
sistema operacional
Sem SO
Windows XP
Windows Embedded for Point of Service (WEPOS)Idiomas
Windows XP – 24 Language groups; WEPOS - 5 language groups
Fonte de alimentação
External DC (power brick)
Tensão de entrada
DC: 12 V at 10.0 amps max.
Consumo de energia (típico)
Touchcomputer: 85 W max.
Serial VFD customer display: 5 W max.
USB magnetic stripe reader: 1 W max.
Total power drawn with all possible peripherals: 91 W max.Dimensões do Touchcomputer com o pedestal
14.0" x 11.3" x 11.0" / 355 mm x 286 mm x 278 mm
Dimensões da Caixa
TBD
Peso (sem embalagem)
17.2 lbs / 7.8 kg
Peso (embalado)
22.5 lbs / 10.2 kg
Temperatura de operação
0°C to 35°C / 32°F to 95°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 5%-95%Aprovações e declarações reguladoras
UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950
Relógio de tempo real
Bateria de lítio-ion
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Threaded holes on bottom of stand for secure mountingGarantia
3 anos
Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDCabos de força
A North American power cable and a European power cable are included. For touchcomputers being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317
Outras características
Accessible hard disk drive
Opções de upgrade
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
Modelos de cabo de força por região para E-Series
América do Norte - Elo P/N: E042259
Substituição da fonte de alimentação CC
12V DC power brick, part number E114692, is available at additional cost.
Caneta stylus IntelliTouch opcional
D82064-000, available at additional cost.
