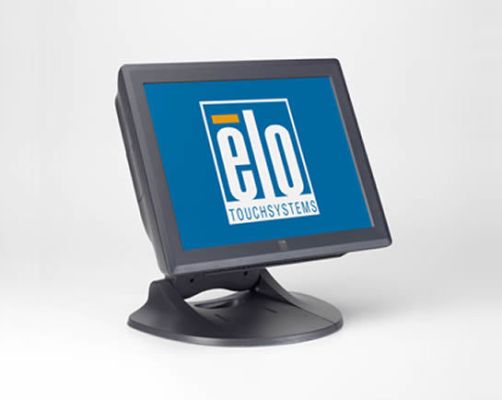

15A2 15" Touchcomputer (Discontinued June 2011)
Como Comprar

Overview

The 15A2 touchcomputer with dual video-display capability includes the choice of the industry-leading Elo touch technologies: AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave, CarrollTouch infrared and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. The space-saving, compact design of the 15A2 touchcomputer offers increased flexibility for simplified integration of a variety of optional field-replaceable peripherals that it shares with the 17A2 touchcomputer and 1729L touchmonitor: three-track magnetic stripe reader (MSR); customer-facing display; biometric fingerprint reader; and 3-watt speaker bar with or without optional single line or omni-directional barcode scanner. A unique cable management design conceals cables from view, providing additional security from tampering and robust tie-downs for strain relief. The multi-adjustable stand offers flexibility to accommodate a variety of installation configurations and the stand is easily removed for secure mounting to countertops and walls. Serviceability is enhanced with easy access to the hard drive and compact flash through a slide-out drawer.

Features
  • Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 15" LCD display, Combines processing capability with touchscreen to fit virtually anywhere
  • Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529 based on Passmark Benchmark
  • "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting - Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options complement store layout and customer traffic
  • Variety of optional field installable and replaceable point-of-service peripherals - Variety of optional field installable and replaceable point-of-service peripherals
  • USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
  • Dual video display capability - Allows attachment of a second touch screen display for digital signage
  • Microsoft Windows XP Professional, WEPOS - Increases software and peripheral choices offering versatility and compatibility
  • On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
  • Securable cable cover - Cable management system conceals cables from view providing additional security from tampering and cable strain relief
  • Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
  • User accessible hard drive mounted on slide-out drawer - Easy access and quick upgrades or repairs, lockable with one screw
  • Touchscreen sealed from the factory - Resists dirt, dust and liquid intrusion

Especificações

  • Técnico

    Modelos

    AccuTouch (Antiglare) - E303492
    AccuTouch (Antiglare) - E235543
    AccuTouch (Antiglare) - E260931
    Acoustic Pulse Recognition (Antiglare) - E403628
    Acoustic Pulse Recognition (Antiglare) - E967719
    CarrollTouch (Antiglare) - E565315
    IntelliTouch (Antiglare) - E099344
    IntelliTouch (Antiglare) - E868236
    IntelliTouch (Antiglare) - E210444

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
    Reconhecimento de Pulso Acústico - Single Touch
    CarrollTouch Infrared Technology

    Processador

    Intel Celeron M 1GHz CPU

    BIOS

    ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL, WFM 2.0

    Memória (RAM)

    1 GB DDR2 standard on 1 of 2 slots
    Expandable to 2 GB max

    Drive de disco rígido

    1 x 80 GB 2.5" SATA hard drive

    Armazenamento

    80 GB

    Chipset

    Intel 915GME/ICH6

    Tamanho da diagonal

    15'' diagonais, LCD (LED) TFT matriz ativa

    Visualização na tela (OSD)

    Controls (side): menu, up, down, select, power
    Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
    Languages: English, French, Italian, German, Spanish
    Lockouts: all controls

    Proporção da tela

    4:3

    Área ativa

    12.0" x 9.0" / 304 mm x 228 mm

    Resolução

    1024 x 768

    Outras resoluções suportadas

    800 x 600

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 230 nits
    CarrollTouch: 230 nits
    IntelliTouch: 230 nits

    Tempo de resposta (típico)

    8 msec

    Razão de contraste

    500:1

    Ângulo de visão

    Horizontal: ±75° or 150° total/ Vertical: ±70° or 140° total

    Portas USB

    4 x USB self powered 2.0
    1 port is 12V powered USB (1.5 A) for POS peripherals

    Porta serial

    2 x RS-232 serial (RJ45, 8 position)
    COM2 is RS-232, RS-422 and RS-485 selectable

    Porta Ethernet

    1 x LAN RJ45

    Porta para gaveta

    BIOS selectable
    1 x cash drawer (RJ11, 6 position) or 1 x RJ11 port for optional internal modem

    Portas de áudio

    1 x 3.5 mm audio-out
    1 x 3.5 mm mic-in

    Auto falantes

    Two-watt/channel speakers in display head

    sistema operacional

    Windows XP Professional Service Pack 2
    Windows Embedded for Point of Service (WEPOS)

    Idiomas

    Windows XP – 24 Language groups; WEPOS - 5 language groups

    Fonte de alimentação

    External DC (power brick)

    Tensão de entrada

    DC: 12V 120 W min.

    Consumo de energia (típico)

    Touchcomputer: 85 W max.
    Serial VFD customer display: 5 W max.
    USB fingerprint reader: 3 W max.
    USB magnetic stripe reader: 1 W max.
    USB scanner: 3 W max.
    Speaker bar: 7 W max.
    Modem daughter card: 1 W max.
    Wireless card/TV tuner: 5 W max.
    Total power drawn with all possible peripherals: 101 W max.

    Dimensões do Touchcomputer com o pedestal

    14.1" x 13.4" x 9.4" / 358 mm x 339 mm x 238 mm

    Dimensões da Caixa

    20.87" x 9.84" x 14.96" / 530 mm x 250 mm x 380 mm

    Peso (sem embalagem)

    19.4 lbs / 8.8 kg

    Peso (embalado)

    25.5 lbs / 11.6 kg

    Temperatura de operação

    0°C to 35°C (32°F to 95°F)

    Temperatura de armazenamento

    -20°C to 60°C (-4°F to 140°F)

    Umidade

    Operating: 20%-80%
    Storage: 5%-95%

    Aprovações e declarações reguladoras

    UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950

    Relógio de tempo real

    Bateria de lítio-ion

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    75 mm VESA mount
    Threaded holes on bottom of stand for secure mounting

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Cabos de força

    A North American power cable and a European power cable are included. For touchcomputers being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317.

    Outras características

    Accessible hard disk drive, compact flash, miniPCI card
    Kensington security lock

    Opções de expansão

    Wireless card
    Modem daughter card

    Substituição da Fonte de alimentação

    12V DC power brick, part number E114692, is available at additional cost

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.
