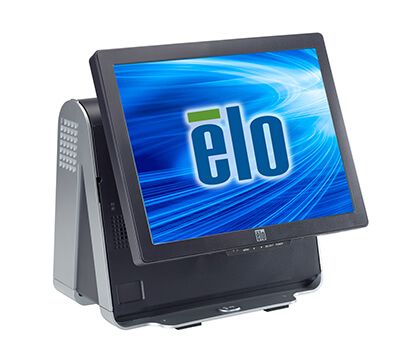

15D1 15" Touchcomputer (Discontinued June 2014)
Como Comprar

Overview

The new D-Series Rev D 15" All-in-One Touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses as the previous versions. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the D-Series Rev C models are versatile and powerful. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance.

New for the D-Series Rev D models are the latest generation Intel 2.5GHz G540 Celeron Dual-Core processor and H61 chipset with advanced Intel® HD Graphics processing. The Intel 2.5GHz G540 Celeron Dual-Core processor is perfect for any POS application. For customers who require additional performance or more robust storage capabilities, the addition of a 2GB RAM option kit or second 320GB hard drive can significantly improve the performance or expand the data storage of the D-Series Rev.D touchcomputers. Also new for Rev.D is the addition of Microsoft Windows 7 Pro 64-bit operating system.

The Elo D-Series AiO’s come with a range of input/output port connection options to allow any POS configuration and support all manner of 3rd party peripherals such as cash drawers or printers, including our available peripherals. In addition, standard ports include 5 RS-232 serial ports, a 12V/24V switchable cash drawer port, 6 USB 2.0 ports and a 24V Powered USB Printer port, and a built-in DVI-D video output port which simplifies adding a secondary customer-facing LCD display (when used with the new rear-facing LCD bracket kit).

Customer friendly, field-installable peripherals include: magnetic strip reader (MSR) for reading credit cards, ID cards, loyalty cards, etc., a rear-facing VFD display for transaction verification, a biometric fingerprint reader for added security, and a bracket kit perfect for attaching the Elo Touch Solutions 0700L 7-inch touch display (or any 2nd LCD) for advertising or customer transaction information.

Typical applications for the D-Series AiO touchcomputer include POS (point-of-service), POI (point of information), loyalty systems, kiosk information systems, home control and internet access points, just to name a few.

Features
  • "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
  • Available with True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Multiple touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements
  • Touchscreen sealed from the factory - Minimize damage from accidental liquid spills
  • Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed
  • Bright high contrast LCD screens - Improved screen readability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, power supply, display head, hard drive(s), and memory - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
  • 5 serial ports (2 are powered 5V default/adjustable to 12V), 7 USB 2.0 ports (1x24VDC USB printer power port), Ethernet 100/10 Base-T, cash drawer port (24V default/adjustable to 12V), new DVI-D secondary display output port, 2 PS/2, audio (1 line-in, 1 line-out, 1 mic-in) - Accessible POS/POI-focused input/output ports make installation of peripherals easy
  • Clips on the back of the unit - Allow users to display customer-facing messages or advertising
  • 3-year warranty - Customer satisfaction and peace of mind

Especificações

  • Técnico

    Modelos

    AccuTouch (Antiglare, Worldwide) – E147204
    AccuTouch (Antiglare, Worldwide) – E885603
    AccuTouch (Antiglare, Worldwide) – E768579
    IntelliTouch (Antiglare, Worldwide) – E446540
    IntelliTouch (Antiglare, Worldwide) – E604060
    IntelliTouch (Antiglare, Worldwide) – E138288

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único

    Processador

    Intel 2.5GHz Celeron Dual-Core G540
    2MB Intel® Smart Cache
    5 GT/s Direct Media Interface (DMI)

    BIOS

    AMI

    Memória (RAM)

    2GB Low-Profile 1333MHz DDR3 DIMM on 1 of 2 slots
    (Expandable up to 16GB maximum on 2 slots)

    Drive de disco rígido

    320GB 2.5” Advanced Format (AF) SATA HDD
    Optional 2nd 320GB hard drive available

    Chipset

    Intel® H61 Express Chipset

    Tamanho da diagonal

    15'' diagonais, LCD (LED) TFT matriz ativa

    Botões de controle

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Proporção da tela

    4:3

    Área ativa

    12.0" x 9.0" / 304.0mm x 228.0mm

    Resolução

    1024 x 768 @ 60Hz

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Tempo de resposta (típico)

    8 msec

    Razão de contraste

    700:1

    Ângulo de visão

    Horizontal: ±70° ou 140° total / Vertical: 65°/60° ou 125° total

    Portas de E/S

    2 x PS/2 (1 Keyboard and 1 Mouse)

    Portas USB

    6 x USB2.0 Standard
    1 x 24VDC USB 2.0 Printer Power Port (can be used as standard USB 2.0 port with standard type-A USB cable).

    Porta serial

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Porta Ethernet

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Porta para gaveta

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models: MultiPRO 320 with CD-005A cable
    MultiPRO 420 with CD-039A cable

    Vídeo de saída adicional

    1 x DVI-D

    Portas de áudio

    1 x 3.5mm line in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Auto falantes

    Two 2W internal speakers

    sistema operacional

    Sem SO
    Windows Pro 7*
    Windows XP Professional Service Pack 3 (32-bit only)

    Idiomas

    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas

    Fonte de alimentação

    Internal PSU (270W)
    AC input voltage: 100-240 VAC
    Input frequency: 47-63 Hz

    Tensão de entrada

    100-240 VAC

    Consumo de energia (típico)

    15D1 Without Peripherals: 75W
    15D1 With All Peripherals Connected: 165W

    Dimensões do Touchcomputer com o pedestal

    13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm

    Dimensões da Caixa

    17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm

    Peso (com o pedestal)

    21.4 lbs / 9.7kg

    Peso (embalado)

    26.7 Ibs / 12.1kg

    Temperatura de operação

    0°C to 35°C / 32°F to 95°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20% to 80%
    Storage: 5% to 95%

    Aprovações e declarações reguladoras

    UL/cUL
    FCC
    Europe CE
    Europe CB
    Argentina AR S-Mark
    Japan VCCI
    Mexico COC
    China CCC
    China CEL

    Relógio de tempo real

    Bateria de lítio-ion

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    Ability to secure base to tabletop or desktop; tiltable display/head unit

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch)
    Touchscreen sealed to LCD (all)

    Cabos de força

    North American and European power cables included. United Kingdom AC power cables are included with the part numbers available for the EMEA region

    Outras características

    Serviceable internal components
    Threaded holes on bottom of base for secure mounting
    Kensington security lock

    Opções de upgrade

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Opções de expansão

    Optional USB wireless kit available (802.11b/g/n)
    Second HDD kit
    Memory kits

    Modelos de cabo de força por região para E-Series

    América do Norte - Elo P/N: E042259
    Europa/Coreia - Elo P/N: E690013
    China - Elo P/N: E030476
    Reino Unido - Elo P/N: E235317
    Taiwan - Elo P/N: E637694
    Argentina - Elo P/N: E98419
    Japão - Elo P/N: E109553
    Japão adaptador de 3 pinos para 2 pinos - Elo P/N: E351985

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost

    Optional Accessories/Peripherals

    Biometric Fingerprint Reader - Elo P/N: E373639
    Rear-Facing Customer Display - Elo P/N: E632206
    Magnetic Stripe Reader - Elo P/N: E145919
    Single-line barcode scanner - Elo P/N: E946856
    Omni-directional barcode scanner - Elo P/N: E449881
    Second HDD/SSD Mounting Kit Only (no drive)
