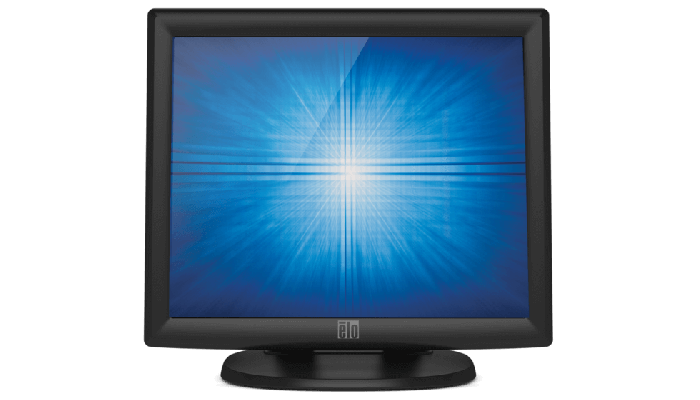

1715L 17" Touchscreen Monitor (Discontinued October 2012)
Overview
The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Other features.
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
APR (Antiglare) - E832132 (Americas, EMEA)
AccuTouch (Antiglare) - E162119 (Asia/Pacific)
APR (Antiglare) - E441167 (Asia/Pacific)
IntelliTouch (Antiglare) - E783252 (Asia/Pacific)
Projected Capacitive (Clear) - E230052 (Worldwide)Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
PCAP (TouchPro® - Capacitiva projetada) - 10 toques
Reconhecimento de Pulso Acústico - Single TouchTamanho da diagonal
17'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
5:4
Área ativa
13.3" x 10.6" / 338mm x 270mm
Resolução
1280 x 1024
Outras resoluções suportadas
1280 x 1024 60, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)Ângulo de visão
Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
AccuTouch: 200 nits
APR: 225 nits
IntelliTouch: 225 nits
Projected Capacitive: 225 nitsTempo de resposta (típico)
25 msec
Razão de contraste
800:1
Interface do touch
Dual serial/USB: E603162, E719160, E162119, E783252
USB: E832132, E441167, E230052Visualização na tela (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsFormato da entrada de vídeo
Analog VGA
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type
Consumo de energia (típico)
AC: 36W
DC: Monitor only: 29W; Monitor + AC/DC Adapter: 36WFonte de alimentação
Internal AC, Optional external DC (power brick)
Tensão de entrada
AC: 100-240 VAC, 50/60 Hz; DC: +12 VDC ±5%
Conector de entrada
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Frequência de entrada
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Dimensões do monitor (com suporte)
15.4" x 8.0" x 14.4" / 391mm x 203mm x 366mm
Dimensões da Caixa
17.99" x 11.42" x 17.32" / 457mm x 290mm x 440mm
Peso (sem embalagem)
15.2 lb / 6.9 kg
Peso (embalado)
21.2 lb / 9.6 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de suporte
Tilt, removable
Opções de montagem
100 mm VESA mount
Threaded-through mounting holes, under standOutras características
Security lock receptacle
Garantia
3 anos
Aprovações e declarações reguladoras
Worldwide including Asia: UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick
Asia: KC, CCC, BSMI, China RoHSCabo de alimentação AC
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at additional cost:
United States: Elo p/n - E042259
Europe: Elo p/n - E690013
United Kingdom: Elo p/n - E235317Kit de cabo para substituição
Elo p/n: E378229 (Gray); Elo p/n: E410150 (Beige) , available at additional cost.
Fonte de Alimentação Opcional
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E785134, is available at additional cost.
Caneta stylus IntelliTouch opcional
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
Cabo de vídeo e touch
Detachable touch and video cables are included.
Periféricos opcionais
Leitor de tarja magnética (Cinza escuro MSR) - Elo P/N: E963462
Suporte opcional
Part number E191105, available at additional cost.
