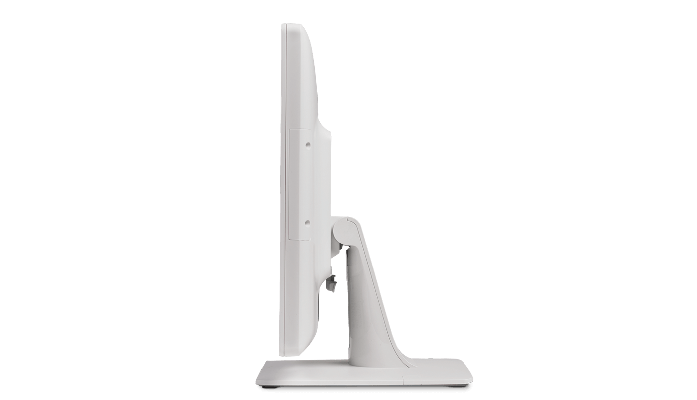

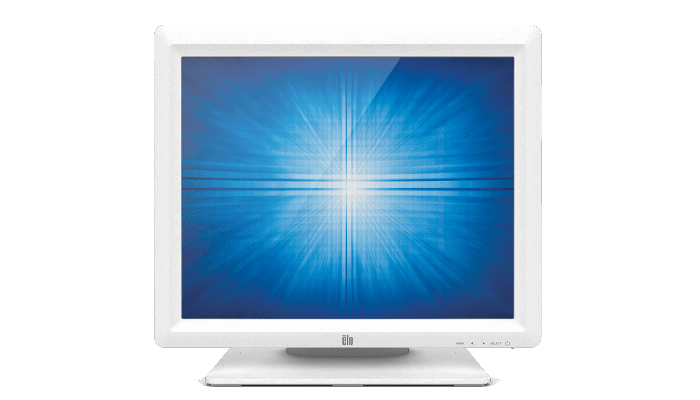

1717L 17" Touchscreen Monitor (Discontinued December 2018)
Overview

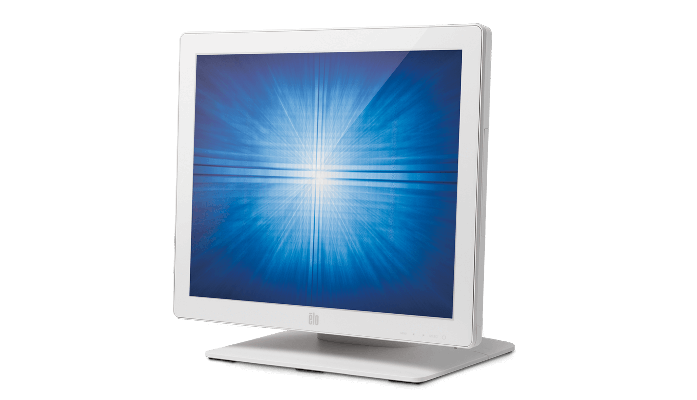

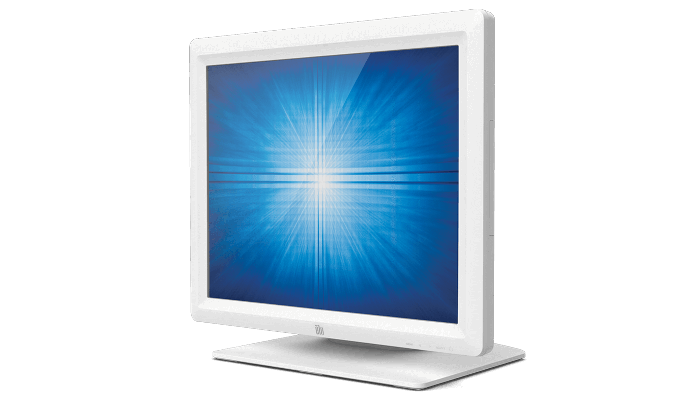

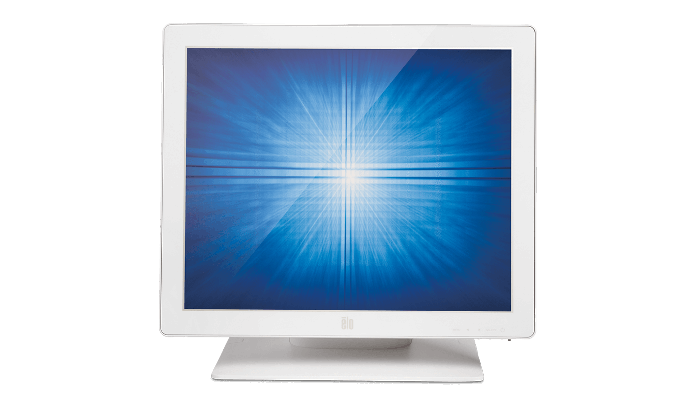

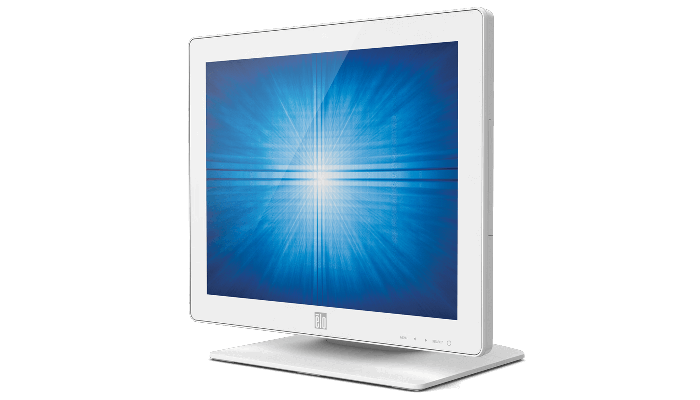

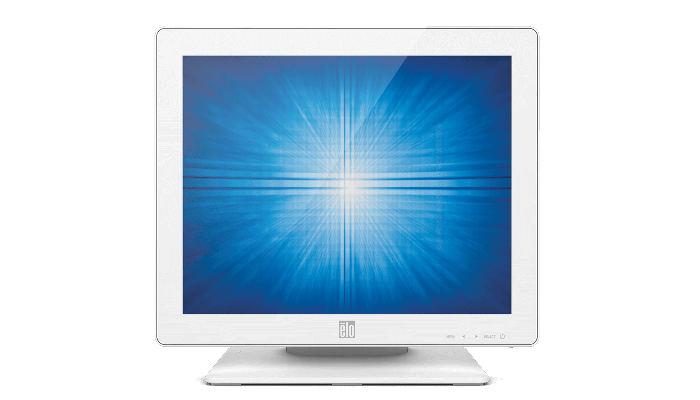

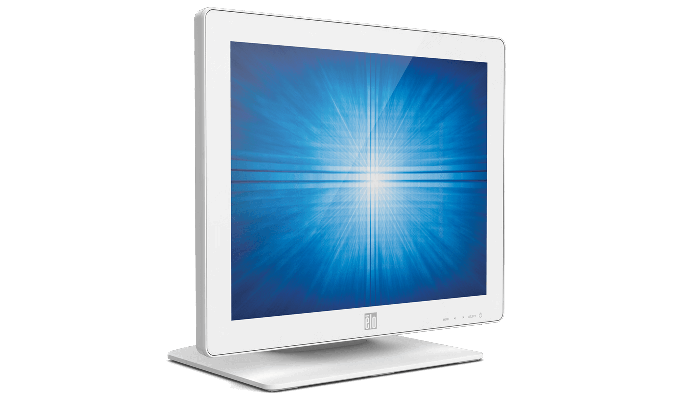

The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch.The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box. |
 |
 |
MSR ready.The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. |

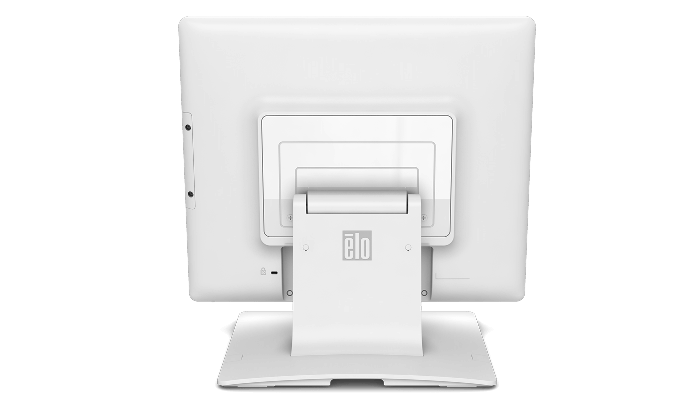

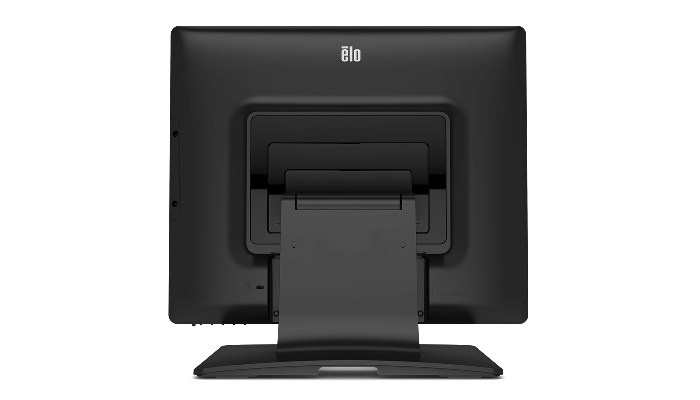

Flexible mounting.The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security. |
 |
Other features.
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 20W, internal and external power options
- Three-year standard warranty
Especificações
-
Técnico
Modelos
PCAP Black (Asia-Pacific & Japan) - E824217
Cor do Monitor
Branco ou Preto
Tecnologia do Touch
PCAP (Capacitiva projetada ) - 10 toques
Tamanho da diagonal
17'' diagonais, LCD (LED) TFT matriz ativa
Espessura do Monitor
1.7" / 43mm panel depth
Proporção da tela
5:4
Área ativa
13.3" x 10.64" / 337.92mm x 270.34mm
Resolução
1280 x 1024
Outras resoluções suportadas
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
1280 x 1024 @ 60Hz, 75HzÂngulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
PCAP: 225 nitsTempo de resposta (típico)
5 msec
Razão de contraste
1000:1
Interface do touch
Serial (RS232) and USB
Visualização na tela (OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, PowerFormato da entrada de vídeo
Analog VGA on Female DB-15 connector
Entrada da frequência de vídeo
Horizontal: 31.5-80 kHz
Vertical: 56-75 HzConsumo de energia (típico)
Monitor Only
ON: 16W
SLEEP: 3.0W
OFF: 0.5WTensão de entrada
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Conector de entrada
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Conector do adaptador de entrada
IEC 60320 C14
Faixa de Tensão de Entrada do Adaptador
100-240VAC, 50/60Hz
Dimensões do monitor (com suporte)
15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm
Dimensões da Caixa
20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm
Peso (sem embalagem)
11.9 lbs / 5.4 Kg
Peso (embalado)
18.3 lbs / 8.3 Kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20% to 80%; Storage: 10% to 90%
Vedado
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Capped through-mount holesOutras características
Security lock receptacle
Garantia
3 anos
Opções de serviço estendido
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Aprovações e declarações reguladoras
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
O que está na caixa
QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand base assembly, Filler Plate
Substituição da fonte de alimentação CC
The monitor may be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E005277, is available at additional cost.
Cabo de alimentação AC
North American & EU power cables included. UK AC power cables included with P/Ns available for EMEA.
China: E030476
Japan: E849156 (3-pin to 2-pin adapter: E351985
UK: E235317
Taiwan: E637694Opção caneta PCAP opcional
E066148
Cabo de vídeo e touch
Detachable touch and video cables are included.
Periféricos opcionais
Leitor de tarja magnética (Preto MSR) - Elo N/P: E500356
Suportes, Montarias e Kits
1717L Placa de montagem VESA (Preto) - Elo N/P: E000405
Suporte de montagem para 0700L como tela virada para trás - Elo N/P: E332358
1717L suporte para mesa de reposição (Branco) - Elo N/P: E061177
1717L suporte para mesa de reposição (Preto) - Elo N/P: E904304
