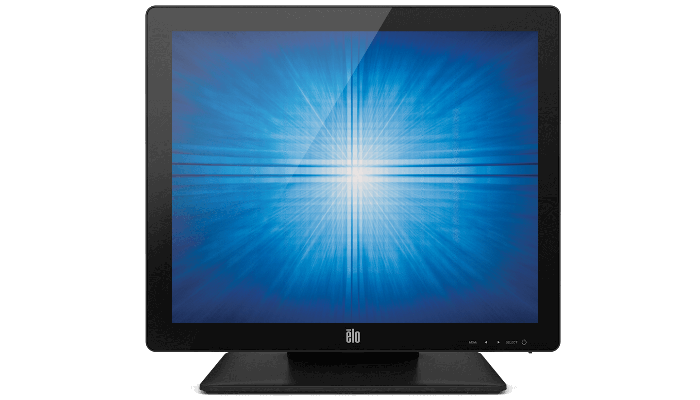

1717L 17" Touchscreen Monitor (Discontinued February 2014)
Overview
The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, “built for touch” industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch ZB pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
The 1717L Touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panels.
Other features.
- High performance, flexible and reliable
- Up to 1280 x 1024 resolution at 60 Hz, 75 Hz
- Available with AccuTouch 5-wire zero-bezel resistive technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch ZB Surface Wave Technology for superior image quality (activated with finger or glove)
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1 and a choice of optional customer diplays
- Sealed touchscreen
- USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
AccuTouch (Antiglare, Worldwide) - E433551
AccuTouch (Antiglare, Worldwide) - E650075
IntelliTouch ZB (Antiglare, Worldwide) - E928533
IntelliTouch ZB (Antiglare, Worldwide) - E854392Cor do Monitor
Branco ou Preto
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - toque únicoTamanho da diagonal
17'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
5:4
Área ativa
13.3" x 10.6" / 338mm x 270mm
Resolução
1280 x 1024
Outras resoluções suportadas
640x480 60Hz,75Hz
720x400 70Hz
800x600 56, 60Hz,75Hz
1024x768 60Hz,75Hz
1280x1024 60Hz,75HzÂngulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
IntelliTouch ZB: 225 nits
AccuTouch: 200 nitsTempo de resposta (típico)
30 msec
Razão de contraste
800:1
Interface do touch
USB: E433551, E650075, E928533, E854392
Visualização na tela (OSD)
Digital OSD
Controles de usuário
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerFormato da entrada de vídeo
Analog VGA
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type
Consumo de energia (típico)
AC: 21W
DC: Monitor only: 29W
Monitor + AC/DC Adapter: 36WFonte de alimentação
External DC (power brick)
Tensão de entrada
DC: +12 VDC ±5%
Conector de entrada
DC: Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Frequência de entrada
Horizontal: 31.5-80 kHz / Vertical: 56-75 Hz
Dimensões do monitor (com suporte)
15.4" x 14.2" x 7.5" / 392mm x 360mm x 191mm
Dimensões da Caixa
18.5" x 16.8" x 8.9" / 471 mm x 426 mm x 226 mm
Peso (sem embalagem)
12.1 lbs / 5.5 kg
Peso (embalado)
16.5 lbs / 7.5 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
75 mm VESA mount
Threaded-through mounting holes, under standOutras características
Security lock receptacle
Garantia
3 anos
Aprovações e declarações reguladoras
Australia C-Tick, Canada cUL, IC, China CCC, Europe CE, Japan VCCI, Korea KCC, e-Standby, Mexico CoC, Taiwan BSMI Mark, United States UL, FCC, International CB
RoHS, China RoHS, WEEE, IMERCCabo de alimentação AC
A North American and European power cables are included with the part numbers available in the regions other than EMEA. Uniked Kingdom AC power cables are included with the part numbers available for the EMEA region.
China: Elo p/n - E030476
Japan: Elo p/n - E849156
Japan 3-pin to 2-pin adapter: Elo p/n - E351985
United Kingdom: Elo p/n - E235317
Taiwan: Elo p/n - E637694Kit de cabo para substituição
Elo p/n: E378229 (Gray); Elo p/n: E410150 (Beige)
Fonte de Alimentação Opcional
The monitor may be powered with DC voltage. A replacement 12V DC power brick, Elo p/n: E005277, is available at additional cost.
Cabo de vídeo e touch
Detachable touch and video cables are included.
Periféricos opcionais
Leitor de tarja magnética (Preto MSR) - Elo N/P: E500356
Leitor de tarja magnética (Branco MSR) - Elo P/N: E233227Suportes, Montarias e Kits
1717L Placa de montagem VESA (Branco) - Elo N/P: E000421
1717L Placa de montagem VESA (Preto) - Elo N/P: E000405
1717L suporte para mesa de reposição (Branco) - Elo N/P: E061177
1717L suporte para mesa de reposição (Preto) - Elo N/P: E904304
