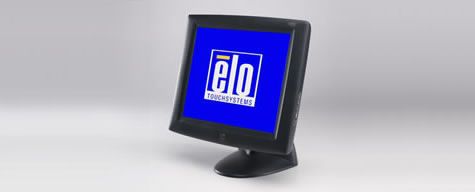

1725L 17" Touchscreen Monitor (Discontinued May 2006)
Overview
The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- High quality panel with 140°x140° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology and dual serial/USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
IntelliTouch (Antiglare, Worldwide) - 442072-001
Cor do Monitor
Cinza escuro
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
Tamanho da diagonal
17'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
5:4
Área ativa
13.3" x 10.6" / 338mm x 270mm
Resolução
1280 x 1024
Outras resoluções suportadas
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzÂngulo de visão
Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total
Número de cores
16.2 million with dithering (6 bit)
Brilho (típico)
LCD panel: 260 nits
IntelliTouch: 239 nitsTempo de resposta (típico)
25 msec
Razão de contraste
450:1
Formato da entrada de vídeo
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin; DVI-D
Fonte de alimentação
External power supply, 100-240 VAC, 50-60 Hz
Tensão de entrada
11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.
Frequência de entrada
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
Consumo de energia (típico)
50 W max.
Auto falantes
Two watt/channel speakers located in display head
Visualização na tela (OSD)
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balanceControles de usuário
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, nput select (analog or digital)
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuDimensões do monitor (com suporte)
17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm
Peso (com o pedestal)
15.08 lb / 6.84 kg
Peso (sem embalagem)
20.92 lbs / 9.49 kg
Peso (embalado)
27.42 lbs / 12.44 kg
Temperatura de operação
0°C to 40°C
Temperatura de armazenamento
-20°C to 60°C
Umidade
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Opções de montagem
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Optional stability plateVida da lâmpada de contraluz
Typical 40,000 hours to half brightness
Garantia
3 anos
Aprovações e declarações reguladoras
UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II
Cabos de força
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: 276875-000.Fonte de Alimentação Opcional
Elo p/n: E785134. Available at additional cost.
Cabo de vídeo e touch
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
