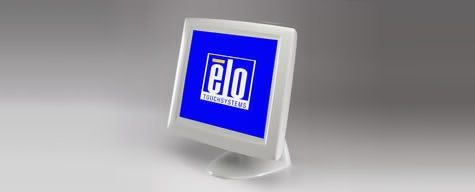

1727L 17" Touchscreen Monitor (Discontinued November 2005)

Especificações

• Técnico

  ---

  Modelos

  AccuTouch ( Antiglare, Worldwide) - E993101
  IntelliTouch (Antiglare, Worldwide) - E157880

  Cor do Monitor

  Bege

  Tecnologia do Touch

  Resistivo de 5 fios (AccuTouch®) - toque único
  SAW (IntelliTouch® - Ondas de superfície acústica) - toque único

  Tamanho da diagonal

  17'' diagonais, LCD (LED) TFT matriz ativa

  Proporção da tela

  5:4

  Área ativa

  13.3" x 10.6" / 338mm x 270mm

  Resolução

  1280 x 1024

  Outras resoluções suportadas

  1280 x 1024 at 60 or 75 Hz
  1280 x 960 at 60 Hz
  1152 x 864 at 75 Hz
  1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
  832 x 624 at 75 Hz (Mac)
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Ângulo de visão

  Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total

  Número de cores

  16.2 million with dithering (6 bit)

  Brilho (típico)

  LCD panel: 260 nits
  AccuTouch: 213 nits
  IntelliTouch: 239 nits

  Tempo de resposta (típico)

  25 msec

  Razão de contraste

  450:1

  Formato da entrada de vídeo

  Analog (no proprietary video card needed); Digital Video Input (DVI-D)

  Entrada do conector dos sinais de vídeo

  Mini D-Sub 15-Pin; DVI-D

  Interface do touch

  Dual serial/USB: E993101, E157880

  Fonte de alimentação

  External power supply, 100-240 VAC, 50-60 Hz

  Tensão de entrada

  11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.

  Frequência de entrada

  Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

  Sync Types

  Separate horizontal and vertical sync, composite sync and sync-on-green

  Consumo de energia (típico)

  50 W max.

  Auto falantes

  Two watt/channel speakers located in display head

  Visualização na tela (OSD)

  OSD lockouts for power and user controls
  OSD extras include volume, treble, bass, balance

  Controles de usuário

  Side: menu, up, down, select, power
  OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, input select (analog or digital)
  Languages: English, German, Spanish, Japanese, French
  OSD disable/enable: power, volume, and/or OSD menu

  Dimensões do monitor (com suporte)

  17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm

  Peso (sem o pedestal)

  15.08 lbs / 6.84 kg

  Peso (sem embalagem)

  20.92 lbs / 9.49 kg

  Peso (embalado)

  27.42 lbs / 12.44 kg

  Temperatura de operação

  0°C to 40°C

  Temperatura de armazenamento

  -20°C to 60°C

  Umidade

  Operating: 20%-80%; Storage: 10%-90%; noncondensing

  Vedado

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  Opções de montagem

  100 mm or 75 mm M4 VESA mount
  100 mm M5 threaded holes on base bottom for table top security
  Removable base
  Reversible stand for wall mounting
  Stand rotates from -5° (from vertical) to 90° (horizontal)
  Optional stability plate

  Vida da lâmpada de contraluz

  Typical 40,000 hours to half brightness

  Garantia

  3 anos

  Aprovações e declarações reguladoras

  UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II

  Cabos de força

  A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
  Elo p/n: E235317.

  Fonte de Alimentação Opcional

  Elo p/n: E219331. Available at additional cost.

  Caneta stylus IntelliTouch opcional

  Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.

  Cabo de vídeo e touch

  Detachable touch and video cables are included.

  Stability Plate

  Mounts to the pedestal of the monitor to increase stability.
  Elo p/n: D47582-000, available at additional cost.
