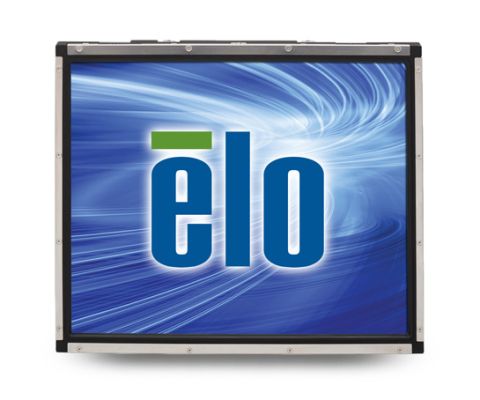

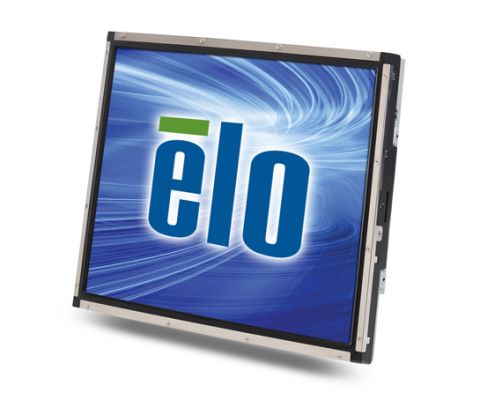

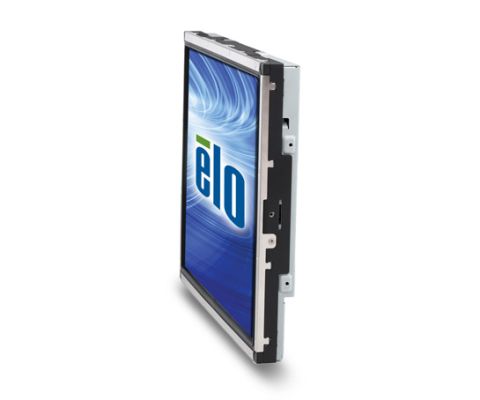

1739L 17" Open Frame Touchscreen (Discontinued September 2015)
Overview
Elo Open Frames Touchscreens have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1739L features a wide viewing angle panel along with a unique, injection-molded mini-bezel and virtually invisible water-resistant seal.

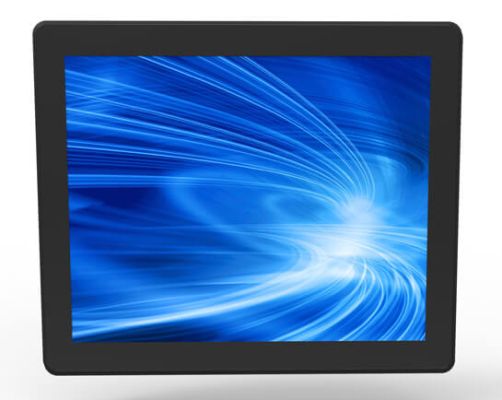

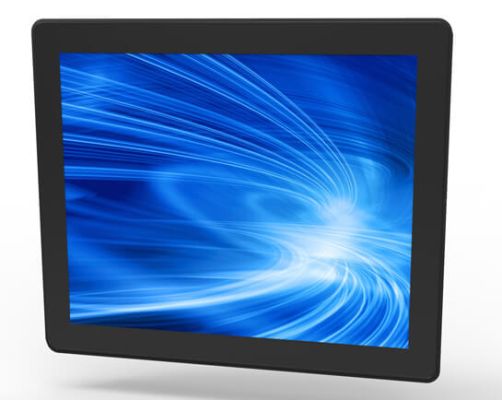

The 1739L is available with a choice of touch technology, with single touch and multi touch options and in standard bezel and seamless, zero-bezel touchscreen design.
Other Features
- High quality energy-saving LED panel
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision mini-bezel with water-resistant 0.5 mm seal

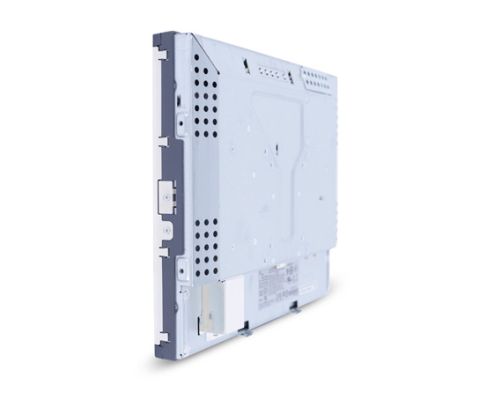

- Mounting options including rear-mount (two standard rear-mount brackets included) and VESA mount; optional front mount (see Accessories tab for details) and rack mount (see Accessories tab for details)
- Multilingual on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
Especificações
-
Técnico
Modelos
CarrollTouch (Antiglare, Worldwide) - E964551
Cor do Monitor
Preto
Tecnologia do Touch
CarrollTouch Infrared Technology
Interface do touch
Dual serial/USB
Tamanho da diagonal
17'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsProporção da tela
5:4
Área ativa
13.3" x 10.6" / 338 mm x 270 mm
Resolução
1280 x 1024
Outras resoluções suportadas
1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzÂngulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
CarrollTouch: 225 nitsTempo de resposta (típico)
5 msec
Razão de contraste
1000:1
Formato da entrada de vídeo
Analog VGA and digital DVI
Entrada do conector dos sinais de vídeo
Female DE-15 connector, Female DVI-D, Dual-Link connector
Fonte de alimentação
External DC - Optional power brick (sold separately)
Conector da entrada do monitor
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Conector da entrada da fonte de alimentação
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Tensão de entrada
DC: +12VDC ±5%
Frequência de entrada
Horizontal: 31.5-80.0 kHz
Vertical: 56.3-75 HzConsumo de energia (típico)
Monitor only: 20 W
Monitor and power brick: 22 WDimensões
Bezel: 14.5" x 12.0" x 1.9" / 368 mm x 306 mm x 49 mm
Zero-bezel: 15.6" x 13" x 1.8" / 397mm x 332mm x 46.4mmDimensões da Caixa
Bezel: 18.11" x 16.10" x 6.89" / 460 mm x 410 mm x 175 mm
Zero-bezel: 18.1” x 15.7” x 6.1” / 460 mm x 400 mm x 155 mmPeso (sem embalagem)
8.8 lbs / 4.0 kg
Peso (embalado)
11.5 lbs / 5.2 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 10%-90%Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
North America/Worldwide: UL/cUL (Recognized), TÜV T-Mark, Argentina S-Mark, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), BSMI Mark, MIC, CCC, China RoHS
Opções de montagem
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)Opções / Periféricos / Upgrades
Fonte de alimentação e kit de cabos para norteamericana - Elo P/N: E005277
Fonte de alimentação e kit de cabos para europeia e coreana - Elo P/N: E571601
Fonte de alimentação e kit de cabos para Reino Unido - Elo P/N: E180092
Fonte de alimentação e kit de cabos para chinesa - Elo P/N: E558862
Fonte de alimentação e kit de cabos para taiwanesa - Elo P/N: E818655
Fonte de alimentação e kit de cabos para japonesa - Elo P/N: E182546
Fonte de alimentação e kit de cabos para argentina - Elo P/N: E887099
Caneta stylus IntelliTouch - Elo P/N: D82064-000
Suporte em L 17” e 19” Elo - Elo P/N: E147211
Elo 17 polegadas - bezel de montagem frontal - Elo P/N: E860319
Suporte de montagem de rack Elo 17” - Elo P/N: E939253
OSD remoto Elo (com cabo de 1.8m) - Elo P/N: E622897Cabo de vídeo e touch
Detachable touch and video cables are included
Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
