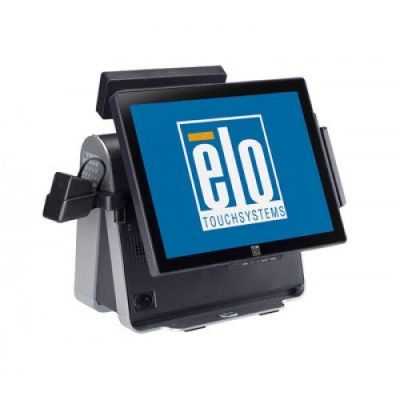

17D1 Rev C 17" Touchcomputer (Discontinued April 2013)
Como Comprar

Overview

The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

Other features
  • "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display's controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, hard drive and power supply - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Eliminate accidental disconnection and give a clean, professional look
  • 5 serial (2 of which are powered, 5V default/12V switchable), 7 USB 2.0, Ethernet 100/10 Base-T, Cash drawer port, 2 PS/2, Audio (1 line-in, 1 line-out, 1 mic-in), 24V printer power connector, parallel port - Accessible POS/POI-focused input/output ports make installation of peripherals easy

Especificações

  • Técnico

    Modelos

    AccuTouch (Antiglare, Worldwide) - E962814
    AccuTouch (Antiglare, Worldwide) - E991776
    AccuTouch (Antiglare, Worldwide) - E932509
    AccuTouch (Antiglare, Worldwide) - E853771
    AccuTouch (Antiglare, Japan) - E209213
    IntelliTouch (Antiglare, Worldwide) - E932202
    IntelliTouch (Antiglare, Worldwide) - E877994
    IntelliTouch (Antiglare, Worldwide) - E360682
    IntelliTouch (Antiglare, Worldwide) - E057329
    IntelliTouch (Antiglare, Japan) - E765555

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único

    Processador

    Intel Dual-Core Celeron E1500 2.2GHz 512K L2 Cache 800MHz FSB LGA775 Pkg

    BIOS

    AMI

    Memória (RAM)

    1GB DDR2 DIMM on 1 of 2 slots (Expandable to 4GB max on 2 slots)

    Drive de disco rígido

    160GB 2.5” 160GB SATA HDD
    Optional 2nd 160GB hard drive available

    Chipset

    Intel G31/ICH7

    Tamanho da diagonal

    17'' diagonais, LCD (LED) TFT matriz ativa

    Botões de controle

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Proporção da tela

    5:4

    Área ativa

    13.3" x 10.6" / 338 mm x 270 mm

    Resolução

    1280 x 1024 @ 60Hz

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    IntelliTouch: 270 nits

    Tempo de resposta (típico)

    5 msec

    Razão de contraste

    1000:1

    Ângulo de visão

    Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total

    Portas de E/S

    2 x PS/2 (1 Keyboard and 1 Mouse)

    Portas USB

    7 x USB2.0 ports
    Additional internal ports available for optional Elo peripherals.

    Porta serial

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Porta Ethernet

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Porta para gaveta

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    -MultiPRO 320 with CD-005A cable
    -MultiPRO 420 with CD-039A cable

    Portas de áudio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Auto falantes

    Two 2W internal speakers

    sistema operacional

    Sem SO
    Windows Embedded for Point of Service (WEPOS)
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Idiomas

    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas
    WEPOS - 32 language groups
    Windows POSReady 2009 – 32 Language groups

    Fonte de alimentação

    Internal PSU (270W)

    Tensão de entrada

    AC: 100-240 VAC 47-63 Hz

    Consumo de energia (típico)

    Without Peripherals: 130W
    With All Peripherals Connected: 213W

    Dimensões do Touchcomputer com o pedestal

    15.0" x 8.4" x 11.3" / 381 mm x 212 mm x 288 mm

    Dimensões da Caixa

    17.72" x 13.39" x 18.7" / 450 mm x 475 mm x 340 mm

    Peso (sem embalagem)

    26 lbs / 11.79 kg

    Peso (embalado)

    30.7 lbs / 13.93 kg

    Temperatura de operação

    0°C to 35°C / 32°F to 95°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20% - 80%; Storage: 5% - 95%; noncondensing

    Aprovações e declarações reguladoras

    UL, cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    Ability to secure base to tabletop or desktop
    Tiltable stand

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch, APR)
    Touchscreen sealed to LCD (all)

    Cabos de força

    North American and European power cables included

    Outras características

    Serviceable internal components
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost.

    Optional Accessories/Peripherals

    Magnetic Stripe Reader (Dark Grey) - Elo P/N: E145919
    Rear-facing Customer Display (2x20 VFD) (Dark Grey) - Elo P/N: E632206
    Biometric Fingerprint Reader (Dark Grey) - Elo P/N: E373639
    Single-line Barcode Scanner (Dark Grey) - Elo P/N: E946856
    Omni-directional Barcode Scanner (Dark Grey) - Elo P/N: E449881
    USB Wireless Kit (B/G/N) (Black) - Elo P/N: E249774
    Rear-Facing LCD Monitor Bracket Kit - Elo P/N: E835074
    Second 160GB Hard Drive - Elo P/N: E597623
    64GB SSD (Solid-State Drive) Option - Elo P/N: E536242
    2nd HDD/SSD Mounting Kit (no drive) - Elo P/N: E349653
    1GB Low-Profile DDR2 Memory DIMM, 800MHz - Elo P/N: E309480
    2GB Low-Profile DDR2 Memory DIMM, 800MHz - Elo P/N: E355477
    Printer Power Cable - Elo P/N: E337867
    24V Powered USB Cable Adapter - Elo P/N: E814900
