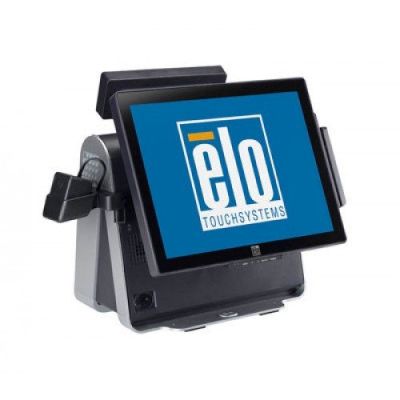

17D1 17" Touchcomputer (Discontinued August 2012)
Como Comprar

Overview

The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

Features
  • "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
  • Available with Zero-Bezel Acoustic Pulse Recognition, True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit your application requirements
  • Touchscreen sealed from the factory - Eliminate accidental damage when liquids are spilled
  • Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed
  • Bright high contrast - Improved screen readability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display's controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, hard drive and power supply - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Eliminate accidental disconnection and give a clean, professional look
  • 5 serial (2 of which are powered, 5V default/12V switchable), 7 USB 2.0, Ethernet 100/10 Base-T, Cash drawer port, 2 PS/2, Audio (1 line-in, 1 line-out, 1 mic-in), 24V printer power connector, parallel port - Accessible POS/POI-focused input/output ports make installation of peripherals easy
  • Clips on the back of the unit - Allow users to display customer-facing messages or advertising
  • 3-year warranty - Customer satisfaction and peace of mind

Especificações

  • Técnico

    Modelos

    AccuTouch (Antiglare, Worldwide) - E107932
    AccuTouch (Antiglare, Worldwide) - E178811
    AccuTouch (Antiglare, Worldwide) - E942332
    AccuTouch (Antiglare, Worldwide) - E848814
    AccuTouch (Antiglare, Worldwide) - E181180
    AccuTouch (Antiglare, Worldwide) - E699044
    IntelliTouch (Antiglare, Worldwide) - E680924
    IntelliTouch (Antiglare, Worldwide) - E451690
    IntelliTouch (Antiglare, Worldwide) - E875048
    IntelliTouch (Antiglare, Worldwide) - E831493
    IntelliTouch (Antiglare, Worldwide) - E470276
    IntelliTouch (Antiglare, Worldwide) - E542060
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E747957
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E187833
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E726010
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E520140
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E995346
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E031317

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
    Reconhecimento de Pulso Acústico - Single Touch

    Processador

    Intel Dual-Core Celeron E1500 2.2GHz 512K L2 Cache 800MHz FSB LGA775 Pkg

    BIOS

    AMI

    Memória (RAM)

    1GB DDR2 DIMM on 1 of 2 slots (Expandable to 4GB max on 2 slots)

    Drive de disco rígido

    160GB 2.5” 160GB SATA HDD
    Optional 2nd 160GB hard drive available

    Chipset

    Intel G31/ICH7

    Tamanho da diagonal

    17'' diagonais, LCD (LED) TFT matriz ativa

    Botões de controle

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Proporção da tela

    5:4

    Área ativa

    13.3" x 10.6" / 338 mm x 270 mm

    Resolução

    1280 x 1024 @ 60Hz

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    Acoustic Pulse Recognition: 270 nits
    IntelliTouch: 270 nits

    Tempo de resposta (típico)

    5 msec

    Razão de contraste

    1000:1

    Ângulo de visão

    Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total

    Portas de E/S

    2 x PS/2 (1 Keyboard and 1 Mouse)

    Portas USB

    7 x USB2.0 ports
    Additional internal ports available for optional Elo peripherals.

    Porta serial

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Porta Ethernet

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Porta para gaveta

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    -MultiPRO 320 with CD-005A cable
    -MultiPRO 420 with CD-039A cable

    Portas de áudio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Auto falantes

    Two 2W internal speakers

    sistema operacional

    Sem SO
    Windows Embedded for Point of Service (WEPOS)
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Idiomas

    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas
    WEPOS - 32 language groups
    Windows POSReady 2009 – 32 Language groups

    Fonte de alimentação

    Internal PSU (270W)

    Tensão de entrada

    AC: 100-240 VAC 47-63 Hz

    Consumo de energia (típico)

    Without Peripherals: 130W
    With All Peripherals Connected: 213W

    Dimensões do Touchcomputer com o pedestal

    15.0" x 8.4" x 11.3" / 381 mm x 212 mm x 288 mm

    Dimensões da Caixa

    17.72" x 13.39" x 18.7" / 450 mm x 340 mm x 475 mm

    Peso (sem embalagem)

    26 lbs / 11.79 kg

    Peso (embalado)

    30.7 lbs / 13.93 kg

    Temperatura de operação

    0°C to 35°C / 32°F to 95°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20% - 80%
    Storage: 5% - 95%

    Aprovações e declarações reguladoras

    UL/cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI

    Relógio de tempo real

    Bateria de lítio-ion

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    Ability to secure base to tabletop or desktop; tiltable stand

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch, APR)
    Touchscreen sealed to LCD (all)

    Cabos de força

    North American and European power cables included

    Outras características

    Serviceable internal components
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Opções de upgrade

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Opções de expansão

    Optional USB wireless kit available (802.11b/g/n)
    Printer power cable
    24V Powered USB Cable/Adapter
    Second 160GB Hard Disk Drive (HDD)
    Solid State Drive (SSD)
    2nd HHD/SSD Mounting Kit Only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile

    Modelos de cabo de força por região para E-Series

    América do Norte - Elo P/N: E042259

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Optional Accessories/Peripherals

    Single-line barcode scanner
    Omni-directional barcode scanner
    Optional USB wireless kit available (802.11b/g/n)
    Printer power cable
    24V Powered USB Cable/Adapter
    Second 160GB Hard Disk Drive (HDD)
    64GB Solid State Drive (SSD)
    2nd HHD/SSD Mounting Kit Only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile DDR2 Memory DIMM Kit
    Magnetic Stripe Reader - Elo P/N: E145919
    Rear-Facing Customer Display (2x20 VFD) - Elo P/N: E632206
    Biometric Fingerprint Reader (FPR) - Elo P/N: E373639
