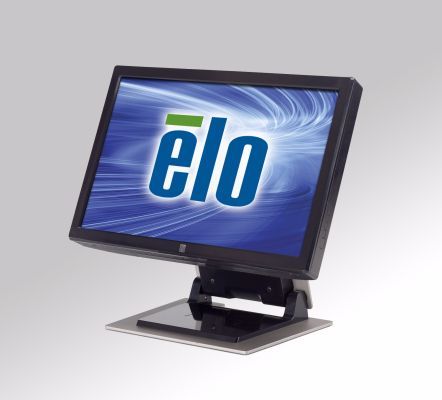

1900L 19" Touchscreen Monitor (Discontinued March 2015)
Overview
Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.
The 1900L is available with IntelliTouch® surface acoustic wave touch technology, a pure-glass touchscreen that provides superior optical performance.
Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Other features.
- Wide-screen format provides more application space
- Pure glass construction provides superior optical performance
- "Designed for touch" features such as a stable tilt stand
- Space-saving built-in speakers
- Sleek, integrated design offers a stylish look for public venues
- User-lockable on-screen display – designed for public access
- Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
- VESA compliance makes wall or arm-mounting possible
- AC and DC power for maximum input flexibility
- VGA and DVI video input (Asia/Pacific models without DVI)
- Screen is resistant to water, dust, grease
- One-time factory calibration for easy deployment and integration
Especificações
-
Técnico
Modelos
IntelliTouch (Dual serial/USB, Antiglare, Americas) - E653938
Cor do Monitor
Dark Gray or Beige
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
Tamanho da diagonal
19'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
16:10
Área ativa
16.1" x 10.1" / 408mm x 255mm
Resolução
1440 x 900 at 60 Hz
Outras resoluções suportadas
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 HzÂngulo de visão
Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
IntelliTouch: 225 nitsTempo de resposta (típico)
5 msec
Razão de contraste
1000:1
Interface do touch
Dual serial/USB
Visualização na tela (OSD)
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsEntrada do conector de áudio
3.5mm TRS jack
Conector de saída para fone de ouvido
3.5mm TRS jack
Auto falantes
Two 2W internal speakers
Formato da entrada de vídeo
Analog VGA, DVI video (Asia/Pacific models without DVI)
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type, DVI-D connector
Consumo de energia (típico)
70W
Fonte de alimentação
Internal AC, Optional external DC (power brick)
Tensão de entrada
AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%
Conector de entrada
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)
Frequência de entrada
Horizontal: 30-83 kHz / Vertical: 56-76 Hz
Dimensões do monitor (com suporte)
17.7" x 15.0" x 11.8" / 449mm x 380mm x 300mm
Dimensões da Caixa
19.75" x 10.06 x 23.63" / 500mm x 255mm x 600mm
Peso (com o pedestal)
19.9 lbs / 9.0 kg
Peso (sem o pedestal)
13.2 lbs / 6.0 kg
Peso embalado (com o pedestal)
26.8 lbs / 12.2 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 10%-90%
noncondensingAltitude
Operating: 0 to 3658m / 12,000 ft
Storage: 0 to 12,192m / 40,000 ftVedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de suporte
Tilt, removable, adjust height, pivot (landscape/portrait mode)
Opções de montagem
100 mm VESA mount
Threaded-through mounting holes, under standOutras características
Security lock receptacle
Garantia
3 anos
Aprovações e declarações reguladoras
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
EMEA: Russia PCT
Asia: Australia C-Tick, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CECabo de alimentação AC
For touchmonitors being shipped to the Americas, a North American AC power cable is included.
For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.
For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.Kit de cabo para substituição
Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.
Fonte de Alimentação Opcional
Elo p/n: E480320 - North America power brick
Elo p/n: E252938 - European power brick
Elo p/n: E872515 - UK power brickCaneta stylus IntelliTouch opcional
D82064-000, available at additional cost.
Cabo de vídeo e touch
Detachable touch, audio, power and video cables are included.
Optional Accessories/Peripherals
Desktop Stand (Dark gray) - Elo p/n: E647647
Desktop Stand (Beige) - Elo p/n: E830716
