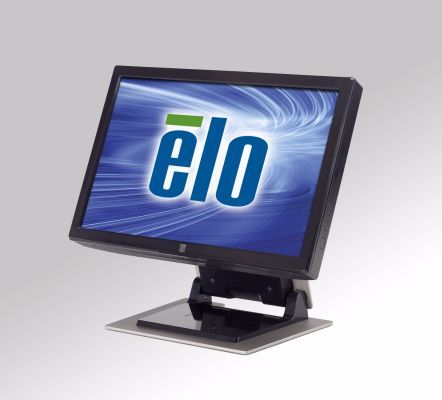

1900L 19" Touchscreen Monitor (Discontinued November 2015)
Como Comprar

Overview

Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.

The 1900L is available with IntelliTouch® SAW touch technology, a pure-glass touchscreen that provides superior optical performance.

Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.

Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Other features.
  • Wide-screen format provides more application space
  • Pure glass construction provides superior optical performance
  • "Designed for touch" features such as a stable tilt stand
  • Space-saving built-in speakers
  • Sleek, integrated design offers a stylish look for public venues
  • User-lockable on-screen display – designed for public access
  • Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
  • VESA compliance makes wall or arm-mounting possible
  • AC and DC power for maximum input flexibility
  • VGA and DVI video input (Asia/Pacific models without DVI)
  • Screen is resistant to water, dust, grease
  • One-time factory calibration for easy deployment and integration

Especificações

  • Técnico

    Modelos

    IntelliTouch (Americas) - E619279
    IntelliTouch (EMEA) - E500662

    Cor do Monitor

    Dark Gray or Beige

    Tecnologia do Touch

    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único

    Tamanho da diagonal

    19'' diagonais, LCD (LED) TFT matriz ativa

    Proporção da tela

    4:3

    Área ativa

    16.1" x 10.1" / 408mm x 255mm

    Resolução

    1440 x 900 at 60 Hz

    Outras resoluções suportadas

    1680 x 1050 at 60 Hz
    1440 x 900 at 60 Hz
    1366 x 768 at 60 Hz
    1360 x 768 at 60 Hz
    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1280 x 768 at 65 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 72 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60 or 72 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 or 72 Hz

    Ângulo de visão

    Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    IntelliTouch: 225 nits

    Tempo de resposta (típico)

    5 msec

    Razão de contraste

    1000:1

    Interface do touch

    Dual serial/USB: E619279, E500662

    Controles de usuário

    Controls (side): menu, up, down, select, power
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: power, user controls

    Entrada do conector de áudio

    3.5mm TRS jack

    Conector de saída para fone de ouvido

    3.5mm TRS jack

    Auto falantes

    Two 2W internal speakers

    Formato da entrada de vídeo

    Analog VGA, DVI video (Asia/Pacific models without DVI)

    Entrada do conector dos sinais de vídeo

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Consumo de energia (típico)

    70W

    Fonte de alimentação

    Internal AC, Optional external DC (power brick)

    Tensão de entrada

    AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%

    Conector de entrada

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)

    Frequência de entrada

    Horizontal: 30-83 kHz / Vertical: 56-76 Hz

    Dimensões do monitor (com suporte)

    17.7" x 11.8" x 15.0" / 449mm x 300mm x 380mm

    Dimensões da Caixa

    19.75" x 23.63" x 10.06" / 500mm x 600mm x 255mm

    Peso (com o pedestal)

    19.9 lbs / 9.0 kg

    Peso (sem o pedestal)

    13.2 lbs / 6.0 kg

    Peso embalado (com o pedestal)

    26.8 lbs / 12.2 kg

    Temperatura de operação

    0°C to 40°C / 32°F to 104°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Altitude

    Operating: 0 to 3658m / 12,000 ft
    Storage: 0 to 12,192m / 40,000 ft

    Vedado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de suporte

    Tilt, removable, adjust height, pivot (landscape/portrait mode)

    Opções de montagem

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Outras características

    Security lock receptacle

    Garantia

    3 anos

    Aprovações e declarações reguladoras

    North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
    South America: Argentina S-mark
    EMEA: Russia PCT
    Asia: Australia C-Tick, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
    Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE

    Cabo de alimentação AC

    For touchmonitors being shipped to the Americas, a North American AC power cable is included.
    For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.
    For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.

    Kit de cabo para substituição

    Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.

    Fonte de Alimentação Opcional

    Elo p/n: E480320 - North America power brick
    Elo p/n: E252938 - European power brick
    Elo p/n: E872515 - UK power brick

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost.

    Cabo de vídeo e touch

    Detachable touch, audio, power and video cables are included.

    Optional Accessories/Peripherals

    Desktop Stand (Dark gray) - Elo p/n: E647647
    Desktop Stand (Beige) - Elo p/n: E830716.
