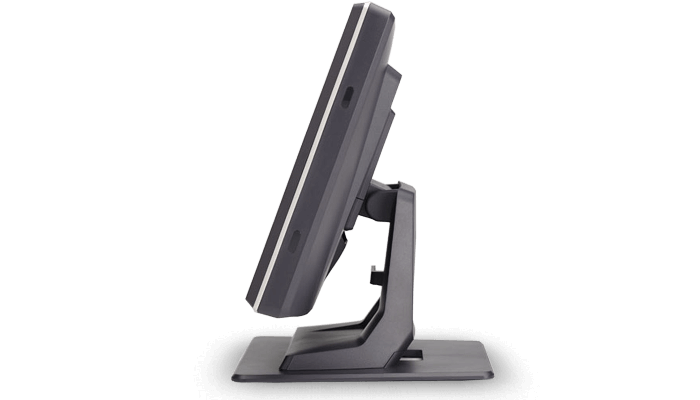

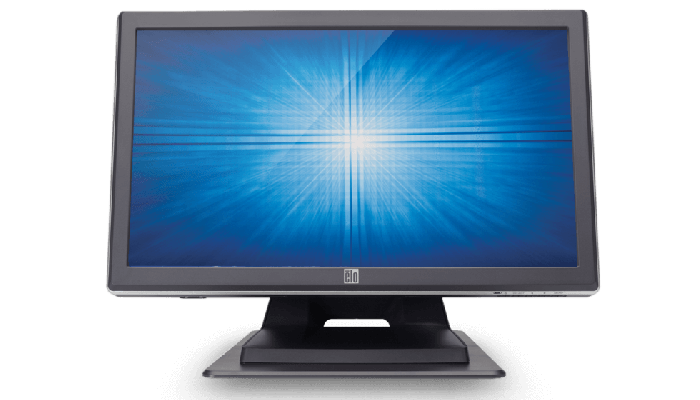

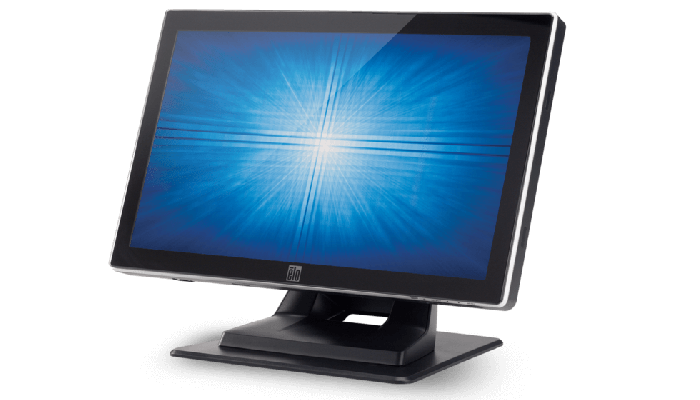

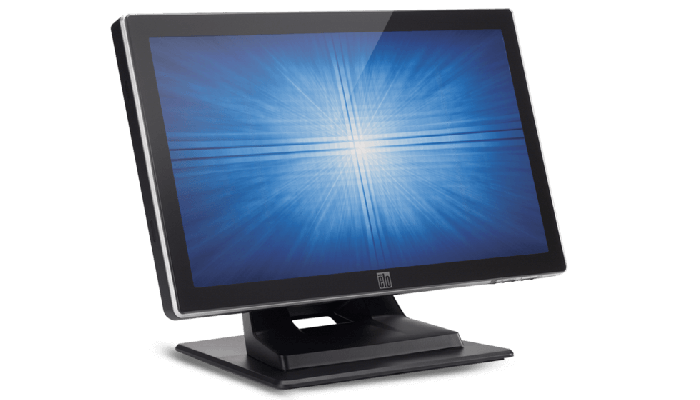

1919L 18.5" Touchscreen Monitor (Discontinued March 2017)
Overview

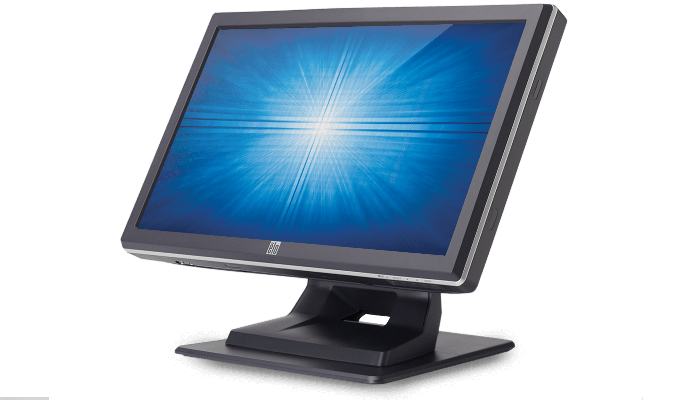

The Elo 1919L 18.5-inch widescreen touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with room for more content, makes the 1919L an attractive solution for commercial touchscreen monitor needs. The 1919L is well-suited for corporate, point-of-sale (POS), point-of-information (POI), point-of-service, interactive signage, loyalty systems, kiosk, light industrial shop-floor automation and home control. The touchmonitor is available with two industry-leading Elo touch technologies and multiple mounting options to support most application uses.

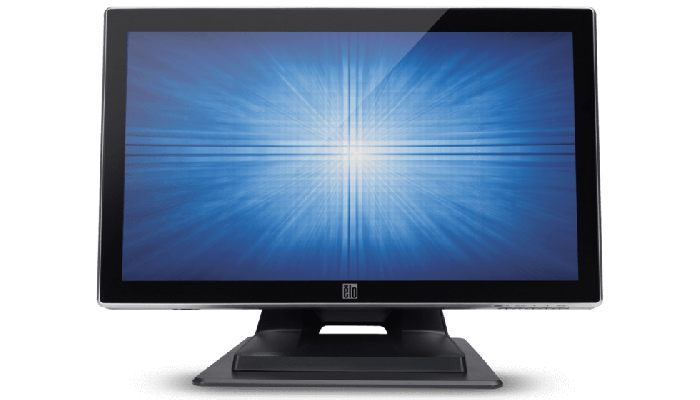

Integrated touch.The 18.5-inch touchscreen monitor offers a zero-bezel IntelliTouch® surface acoustic wave (SAW) touch technology. |
 |
 |

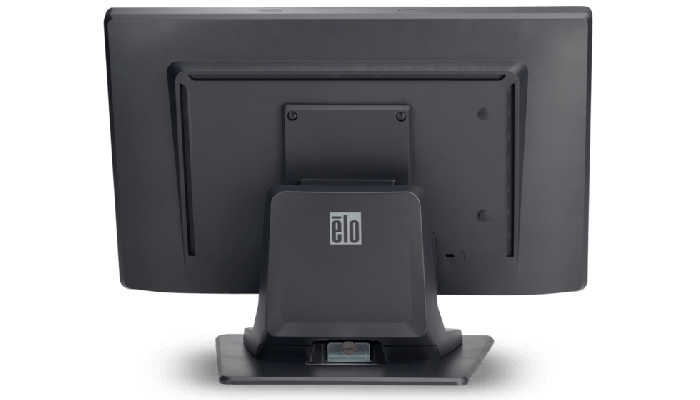

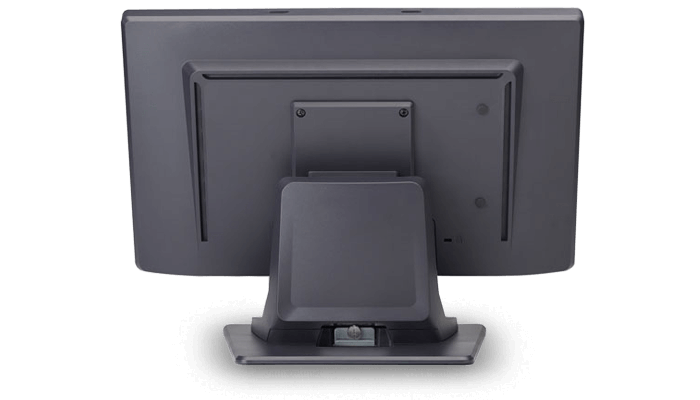

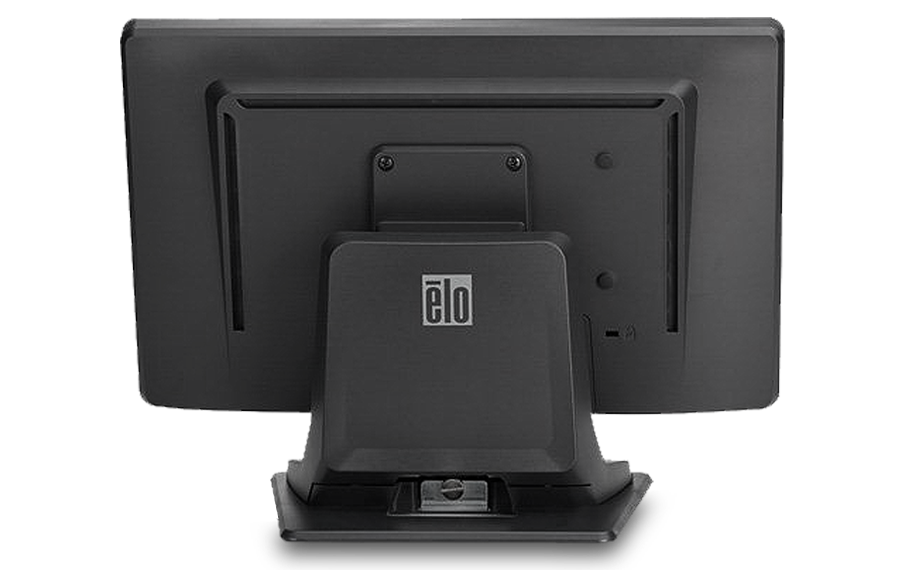

Flexible mounting.The Elo 1919L offers multiple mounting options to ensure installation flexibility including: wall-, arm- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. |

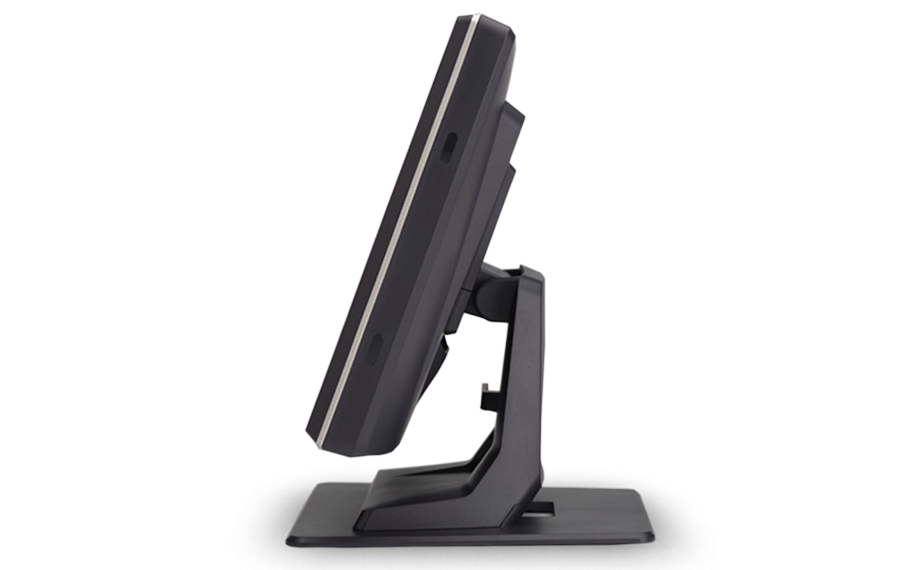

Commercial grade.The 1919L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
 |
Other features.
- Widescreen format provides more application space
- Sealed touchscreen against dirt, dust and liquid
- Space-saving built-in speakers
- User-lockable on-screen display – designed for public access
- VESA compliance makes wall or arm-mounting possible
- VGA video input
- One-time factory calibration for easy deployment and integration (APR only)
- Three-year standard warranty
Especificações
-
Técnico
Modelos
IntelliTouch ZB (Americas) - E176026
Cor do Monitor
Cinza escuro
Tecnologia do Touch
SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - toque único
Tamanho da diagonal
18,5'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
16:9
Área ativa
16.1" x 9.1" / 410mm x 230mm
Resolução
1366 x 768 at 60 Hz
Outras resoluções suportadas
720 x 350 at 70Hz (may not display at full screen)
720 x 400 at 70Hz
640 x 480 at 60, 72, 75Hz
800 x 600 at 56, 60, 72, 75Hz
832 x 624 at 75Hz
1024 x 768 at 60, 70, 75Hz
1280 x 800 at 60 Hz
1280 x 960 at 60Hz
1280 x 1024 at 60, 75Hz
1360 x 768 at 60Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 HzÂngulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch ZB: 225 nitsTempo de resposta (típico)
5 msec
Razão de contraste
1000:1
Formato da entrada de vídeo
Analog VGA
Entrada do conector dos sinais de vídeo
Mini D-sub 15-pin VGA type
Entrada da frequência de vídeo
Horizontal: 30 - 83 KHz
Vertical: 50 - 75 HzEntrada do conector de áudio
3.5mm TRS jack
Alcance do sinal de entrada de áudio
1V rms maximum stereo signal (standard PC line out)
Conector de saída para fone de ouvido
3.5mm TRS jack x 2, wired in parallel
Sinal de saída do auscultador
Delivers 90mW of power into a single 32-ohm stereo load (for 1KHz signal)
Fonte de alimentação
AC-DC power adapter
Tensão de entrada
12V +/- 5%
Conector de entrada
Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)
Conector do adaptador de entrada
IEC 60320 C14
Faixa de Tensão de Entrada do Adaptador
100-240VAC, 50/60 Hz
Consumo de energia (típico)
Monitor only (no audio): 18.5 W
Monitor + AC/DC Adapter at 230V/50 Hz (no audio): 20.7WAuto falantes
Two x 2W internal speakers
Visualização na tela (OSD)
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, OSD language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), Recall Defaults, Sharpness, Volume, Mute
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsDimensões do monitor (com suporte)
17.9" x 9.3" x 12.6" / 454mm x 236mm x 321mm
Dimensões da Caixa
22.4" x 16.3" x 8.9" / 570mm x 415mm x 225mm
Peso (com o pedestal)
15.1 lbs / 6.8 kg
Peso (sem o pedestal)
10.2 lbs / 4.6 kg
Peso embalado (com o pedestal)
21.5 lbs / 9.7 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20% to 80%
Storage: 10% to 90%Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de suporte

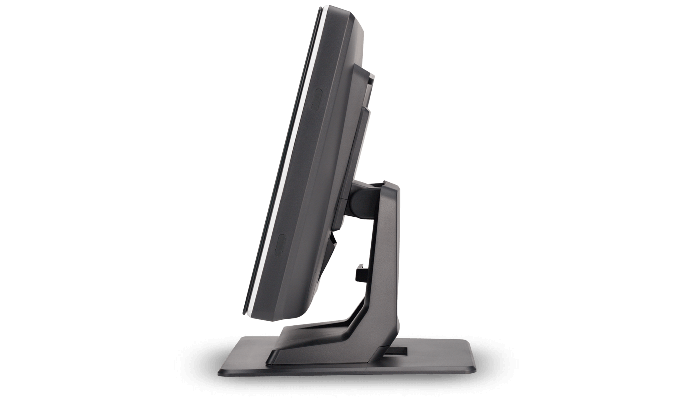

Tilt, remove, pivot (landscape/portrait mode)
Opções de montagem
With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode
100 mm VESA mountGarantia
3 anos
Opções de serviço estendido
1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Aprovações e declarações reguladoras
UL, cUL, CE, CCC, VCCI, KC, KCC, CoC, BSMI, CB, RoHS, China RoHS, WEEE, IMERC
O que está na caixa
QIG, User Manual CD, VGA cable, USB cable, Serial cable (attached if support combo), Audio cable, power cord, power adapter, screws for cable cover and stand plate
Kit de cabo para substituição
P/N: E378229 (Gray)
Fonte de Alimentação Opcional
North America: E005277
EMEA & Korea: E571601
UK: E180092
China: E558862
Taiwan: E818655
Japan: E182546
Argentina: E887099Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW technology. Elo P/N: D82064-000, available at additional cost.
