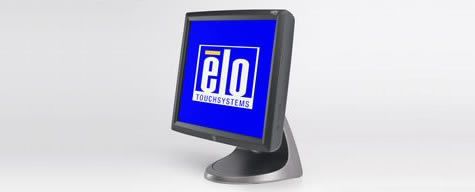

1925L 19" Touchscreen Monitor (Discontinued September 2007)
Overview
The 1925L 19" touchmonitor is the latest addition to the popular Elo desktop line, designed to address the key needs of touch applications requiring a large, visually appealing display. The 1925L can truly be called "designed for touch" with features such as a stable tilt base, OSD controls on the side with lockout feature for public use, speakers, and flexible input/output connectivity, including extra USB connections. It has a unique combination of performance, reliability, installation and ease-of-use, all with distinctive new styling.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
AccuTouch (Serial, Antiglare, Worldwide) - E974307
AccuTouch (USB, Antiglare, Worldwide) - E776519
IntelliTouch (USB, Antiglare, Worldwide) - E960780Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque únicoTamanho da diagonal
19'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
5:4
Área ativa
14.8" x 11.9" / 376mm x 301mm
Resolução
1280 x 1024
Outras resoluções suportadas
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzÂngulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±85° ou 170° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsTempo de resposta (típico)
25 msec
Razão de contraste
700:1
Interface do touch
Serial: E974307
USB: E776519, E960780Visualização na tela (OSD)
Digital
Locking OSD and/or powerControles de usuário
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseEntrada do conector de áudio
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksAuto falantes
Two built-in, rear-facing 2W speakers in display head
Formato da entrada de vídeo
Digital Video Input (DVI-D), Analog, S-Video, NTSC/PAL
Entrada do conector dos sinais de vídeo
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesEntrada da frequência de vídeo
Separate H & V, composite sync, sync-on-green
Consumo de energia (típico)
40 W
Fonte de alimentação
Internal, with jack to accept power from optional external brick
Tensão de entrada
85-265 V, 50-60 Hz and/or 12VDC @ 3.75A (max)
Conector de entrada
Inlets IEC60320-1C6 for AC and 5.5 mm external
2.5 mm internal coaxial for DC
Cords NEMA 15-3 and CEE 7 SchukoFrequência de entrada
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Dimensões do monitor (com suporte)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Peso (sem embalagem)
21.5 lbs / 9.78 kg
Peso (embalado)
30.0 lbs / 13.6 kg
Temperatura de operação
0°C to 40°C
Temperatura de armazenamento
-20°C to 60°C
Umidade
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlGarantia
3 anos
Vida da lâmpada de contraluz
50,000 hours
Aprovações e declarações reguladoras
UL, cUL, TmÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B, CB Report, Certificate, MPRII, Section 508
Cabo de alimentação AC
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
A replacement North American AC power cable, Elo p/n: C45467-000, is available at additional cost.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E042259
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317Fonte de Alimentação Opcional
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E034907, is available at additional cost
Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Cabo de vídeo e touch
Detachable touch and video cables are included. A replacement DVI-I Analog video cable, part number E38043-000, is available at additional cost.
Periféricos opcionais
Leitor de tarja magnética (MSR) - Elo P/N: E039290
Fonte de alimentação norte-americana - Elo N/P: E348315
Fonte de alimentação europeia - Elo N/P: E162361
Fonte de alimentação para Reino Unido - Elo N/P: E334749
Fonte de alimentação chinesa - Elo N/P: E834397
Fonte de alimentação taiwanesa - Elo N/P: E953228
Fonte de alimentação coreana - Elo N/P: E986605
Fonte de alimentação japonesa - Elo N/P: E033396
Fonte de alimentação argentina - Elo N/P: E707702
