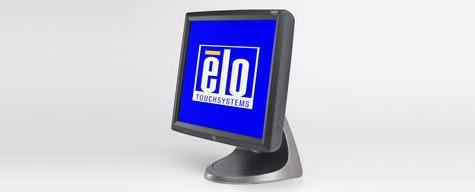

1926L 19" Touchscreen Monitor (Discontinued June 2007)
Overview
The 1926L carries worldwide medical certifications and is available with AccuTouch five-wire resistive touchscreen technology, the most widely used technology for medical equipment applications, or IntelliTouch surface wave technology for superior image quality. Certifications include UL/cUL 2601-1/C22.2 No. 601.1, and CE MDD. The innovative IPX1 enclosure design (AccuTouch only) ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. The drip-proof nature of this touchmonitor allows the monitor to be sterilized with hospital-grade disinfectants. As a result, this monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchscreen can be activated with a gloved hand-a critical capability for medical applications. The 1926L is a truly integrated solution for medical equipment OEMs and health care systems integrators seeking a reliable, durable and cost-effective medical grade touchmonitor.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
AccuTouch (Serial, Antiglare, Worldwide) - F49784-000
AccuTouch (USB, Antiglare, Worldwide) - 107650-000
AccuTouch (Serial, Antiglare, Worldwide) - E51854-000
AccuTouch (USB, Antiglare, Worldwide) - F22431-000
IntelliTouch (Serial, Antiglare, Worldwide) - E343474
IntelliTouch (USB, Antiglare, Worldwide) - E125960
IntelliTouch (Serial, Antiglare, Worldwide) - E624063
IntelliTouch (USB, Antiglare, Worldwide) - E764789Cor do Monitor
Dark Gray or Beige
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW (IntelliTouch® - Ondas de superfície acústica) - toque únicoTamanho da diagonal
19'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
5:4
Área ativa
14.8" x 11.9" / 376mm x 301mm
Resolução
1280 x 1024 at 60, 70 or 75 Hz
Outras resoluções suportadas
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzÂngulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±85° ou 170° total
Número de cores
16.7 million, 8-bit per color data
Brilho (típico)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsTempo de resposta (típico)
25 msec
Razão de contraste
700:1
Interface do touch
Serial: F49784-000, E51854-000, E343474, E624063
USB: 107650-000, F22431-000, E125960, E764789Visualização na tela (OSD)
Digital
Locking OSD and/or powerControles de usuário
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseEntrada do conector de áudio
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksAuto falantes
Two built-in, rear-facing 2W speakers in display head
Formato da entrada de vídeo
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
Entrada do conector dos sinais de vídeo
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesEntrada da frequência de vídeo
Separate H & V, composite sync, sync-on-green
Consumo de energia (típico)
40 W
Fonte de alimentação
External (inlet connector: IEC60320-C13)
Tensão de entrada
100-240 V, 50/60 Hz
Frequência de entrada
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
Dimensões do monitor (com suporte)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Peso (sem embalagem)
21.5 lbs / 9.78 kg
Peso (embalado)
30.0 lbs / 13.6 kg
Temperatura de operação
0°C to 40°C
Temperatura de armazenamento
-20°C to 60°C
Umidade
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlGarantia
3 anos
Aprovações e declarações reguladoras
UL, cUL Classified 60601-1, CE, FCC, IC, C-Tick Class B, IPX1 (AccuTouch only)
Cabos de força
A 10' hospital grade North America power cord and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: 276875-000.Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Cabo de vídeo e touch
Detachable touch and video cables are included.
Periféricos opcionais
Leitor de tarja magnética (MSR) - Elo P/N: E039290
