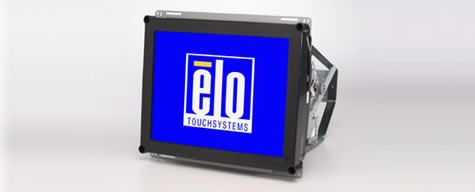

1987C 19" CRT Open Frame Touchscreen (Discontinued April 2007)
Overview
Elo IntelliTouch® ZB touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch ZB touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Especificações
-
Técnico
Modelos
IntelliTouch ZB (Antireflective, Worldwide) - E03176-000
IntelliTouch ZB (Antireflective, Worldwide) - E10509-000Cor do Monitor
Preto
Tecnologia do Touch
SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - toque único
Interface do touch
Serial: E03176-000
USB: E10509-000Tamanho da diagonal
19'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Multilingual OSD
Proporção da tela
4:3
Área ativa
Horizontal: 14.2" / 360 mm
Vertical: 10.6" / 270 mmResolução
1024 x 768 at 85 Hz
Outras resoluções suportadas
1024 x 768 at 85 Hz (VESA)
800 x 600 at 85 Hz (VESA)
640 x 480 at 60 Hz (VGA)Número de cores
16.7 milhões
Razão de contraste
300:1
Formato da entrada de vídeo
Analog
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin (female)
Fonte de alimentação
100-240 VAC, 50-60 Hz
Frequência de entrada
Horizontal: 30-70 kHz
Vertical: 50-160 HzConsumo de energia (típico)
75 W typical, 85 W max.
Dimensões
16.7" x 14.8" x 17.3" / 424 mm x 374.7 mm x 440 mm
Peso (sem embalagem)
39.2 lbs / 17.8 kg
Peso (embalado)
48.0 lbs / 21.8 kg
Temperatura de operação
5°C to 55°C
Temperatura de armazenamento
-20°C to 65°C
Umidade
Operating: 10% to 80%
noncondensingMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
Conectar com Elo
Aprovações e declarações reguladoras
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV CE, VCCI, C-Tick, MPR II, DHHS, Demko
Cabos de força
A special locking power cable is required. Power cables which may be suitable are available separately:
North American version (drawing MS500325 Rev B)
European version (drawing MS500324 Rev B)Acessórios opcionais do IDS
Replacement Board Set - Elo P/N: F34044-000 (image). Available at additional cost
Square Kiosk Bezel - Elo P/N: F45987-000. Shipped separately. Available at additional cost.Brackets & Bezel Kits
Open-Frame Adaptor Bracket - Elo P/N: A44380-000.
For base-mounting solutions. Available at additional cost.Cabo de vídeo e touch
Detachable touch and video cables are included
