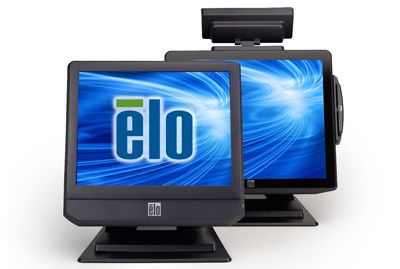

B-Series 15" and 17" Touchcomputer (Discontinued May 2016)
Overview
The new B-Series Rev.B 15-inch and 17-inch All-in-One touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale, point-of-service, retail and hospitality businesses as the previous version, but now with higher performance and more features. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance. The fan-less B2 models utilize the latest Intel® 1.86GHz Atom™ Dual-Core N2800 processors, or for higher performance, the fan-cooled B3 models utilize the 3rd Generation Intel Core™ i3 3.3GHz i3-3220 (Ivy Bridge) processors with Intel HD2500 graphics. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the B-Series Rev.B models are versatile and powerful.
The new Intel Dual-Core Atom and 3rd Generation Core i3 processors fit any POS application. Also new for the B-Series Rev.B models are twice the standard memory and twice the hard disk drive (HDD) storage capacity - now with 2GB DDR3 RAM and a 320GB advanced format HDD standard across all models. For customers who require additional performance or more robust storage capabilities, the addition of a 2GB or 4GB RAM option kit or second 320GB hard drive can significantly improve the performance or expand the data storage of the B-Series Rev.B touchcomputers.
The Elo B-Series AiO’s are available with industry-leading touchscreen technologies from Elo including our new iTouch Plus multi-touch, zero-bezel surface acoustic wave and our proven industry-leading AccuTouch no-bezel 5-wire resistive. The B-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design that is spill-resistant, protecting the unit from liquid drips and spills.
Customer friendly, field-installable peripherals include: magnetic strip reader (MSR) for reading credit cards, ID cards, loyalty cards, etc., a rear-facing VFD display for transaction verification, a biometric fingerprint reader for added security, and a bracket kit perfect for attaching the Elo Touch Solutions 0700L 7-inch touch display (or any 2nd LCD) for advertising or customer transaction information.
Typical applications for the B-Series AiO touchcomputers include POS (point-of-service), POI (point of information), loyalty systems, kiosk information systems, industrial automation and internet access points, just to name a few.
Features
- Clean and neat with only a single wire for power required in many applications - Improved aesthetics, ease of integration into any environment or application
- Full range of standard connectivity ports to add functionality (USB, serial, etc) - Allowing for easy integration to any legacy or new install environments
- Special USB ports around periphery of monitor provide the ability to integrate peripherals with no external wiring - Clean look, added security; no accidental disconnects
- Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
- Choice of industry-leading touch technologies including iTouch Plus (zero-bezel multi-touch surface acoustic wave) and AccuTouch “no-bezel” (resistive) - Touch options for any application or environment; zero-bezel designs offer seamless, edge-to-edge design for a sleek appearance that is easy to clean and maintain
- "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Durability to withstand the rigors of use in public environments with mounting options that complement a variety of configurations
- Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
- Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
- Energy Star 5.2 certified - Lower energy costs and better for the environment
- Worldwide agency approvals - Meets local agency approvals, as required in many countries
- 3-year warranty plus Elo quality and reliability - Satisfaction and peace of mind from 40 years of experience built into all products
Especificações
-
Técnico
Modelos
AccuTouch (USB, Worldwide) - E597077, E272450
AccuTouch (USB, Worldwide) - E594735, E136113
AccuTouch (USB, Worldwide) - E341238, E630472
IntelliTouch ZB DT (USB, Worldwide) - E623500, E535998
IntelliTouch ZB DT (USB, Worldwide) - E130107, E431446
IntelliTouch ZB DT (USB, Worldwide) - E006103, E309211
AccuTouch (USB, Worldwide) - E051651, E933807
AccuTouch (USB, Worldwide) - E041642, E427078
AccuTouch (USB, Worldwide) - E719553, E182884
IntelliTouch ZB DT (USB, Worldwide) - E792415, E120738
IntelliTouch ZB DT (USB, Worldwide) - E010116, E319977
IntelliTouch ZB DT (USB, Worldwide) - E406366, E469992Cor do Monitor
Cinza escuro
Tecnologia do Touch
Resistivo de 5 fios (AccuTouch®) - toque único
SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - dois toquesProcessador
Intel 1.86GHz Atom Dual-Core N2800
1MB L2 Cache
2.5 GT/s Direct Media Interface (DMI)BIOS
AMI
Memória (RAM)
2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
(Expandable to 4GB maximum on 2 slots)Drive de disco rígido
320GB 2.5" 5400RPM Advanced Format (4K)
Chipset
Intel NM10 Express
Tamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Botões de controle
Controls (bottom): Power, brightness up, brightness down, volume up, volume down
Security lockouts:Power and control buttons lockProporção da tela
4:3
Área ativa
12.0" x 9.0" / 304.0mm x 228.0mm
Resolução
1024 x 768 @ 60Hz
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch ZB DT: 225 nitsTempo de resposta (típico)
8 msec
Razão de contraste
700:1
Ângulo de visão
Horizontal: ±70° ou 140° total / Vertical: 65°/60° ou 125° total
Portas USB
6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
Additional internal ports available for optional Elo peripheralsPorta serial
2 x NATIVE RS-232 Serial (standard)
Porta Ethernet
1 x LAN RJ45 (Gigabit)
Wireless
Optional USB wireless kit available (802.11b/g/n)
Porta para gaveta
Built-in 12V/24V Cash Drawer Port (24V default; selectable via jumper)
Vídeo de saída adicional
1 x 2nd VGA out port
Portas de áudio
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-inAuto falantes
Two 2W internal speakers
sistema operacional
Sem SO
Windows XP Professional Service Pack 3 (32-bit only)
Windows 7 Professional (32-bit only)Idiomas
Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas
Fonte de alimentação
External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 150W (Max draw: 170W)Tensão de entrada
100-240VAC
Consumo de energia (típico)
47W
Dimensões do Touchcomputer com o pedestal
14.0" x 14.3" x 10.5" / 355mm x 364mm x 267mm
Dimensões do Touchcomputer sem o pedestal
14.0" x 13.1" x 3.6" / 355mm x 332mm x 92mm
Dimensões da Caixa
17.4" x 21.9" x 10.2" / 443mm x 555mm x 258mm
Peso (com o pedestal)
17.9lbs / 8.1kg
Peso (sem o pedestal)
13.0lbs / 5.9kg
Peso (embalado)
24.5lbs / 11.1kg
Temperatura de operação
0°C to 35°C / 32°F to 95°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20% to 80%
Storage: 5% to 95%Aprovações e declarações reguladoras
UL/cUL
FCC
TUV
CE
CB
Mexico COC
Argentina S-mark (power brick only)
C-Tick
VCCI
CCC
Energy Star 5.2Relógio de tempo real
Bateria de lítio-ion
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
100mm VESA mount or secure base to tabletop or desktop
Garantia
3 anos
Vedado
Touchscreen sealed to sub-bezel (AccuTouch, iTouch Plus)
Touchscreen sealed to LCD (all)Cabos de força
North American and European power cables included
Outras características
Serviceable internal components
Removable base with 100mm VESA mounting
Threaded holes on bottom of base for mounting
Kensington security lockOpções de upgrade
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
Opções de expansão
Wireless Adapter (USB, 802.11 b/g/n)
Modelos de cabo de força por região para E-Series
América do Norte - Elo P/N: E042259
Europa/Coreia - Elo P/N: E690013
China - Elo P/N: E030476
Reino Unido - Elo P/N: E235317
Taiwan - Elo P/N: E637694
Argentina - Elo P/N: E98419
Japão - Elo P/N: E109553
Japão adaptador de 3 pinos para 2 pinos - Elo P/N: E351985Substituição da fonte de alimentação CC
12V DC power brick, part number E806884, is available at additional cost.
Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch ZB surface wave touch technology. Part number D82064-000, available at additional cost.
Optional Accessories/Peripherals
Second 320GB Hard Disk Drive (HDD) Kit
Second HDD/SSD Mounting Bracket Kit Only
2GB DDR3 SODIMM Memory Kit
4GB DDR3 SODIMM Memory Kit
Magnetic Stripe Reader (MSR)
Customer Display (2x20 VFD)
7" LCD Customer Display (with or without touch)
Mouting Bracket Kit - Elo P/N: E750095)
Second Rear-Facing LCD Mounting Bracket Kit
Biometric Fingerprint Reader (FPR)
Wireless Adapter (USB, 802.11b/g/n)Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
Reads up to 3 tracks of information
Bidirectional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Reads ISO7811, AAMVA, and most other card data formats
PC software makes configuration changes easy
Swipe speeds from 3 to 60 inches per second
Interfaces: USB-IDTech-HID
Fully supports USB 2.0
Part Number: E545781
