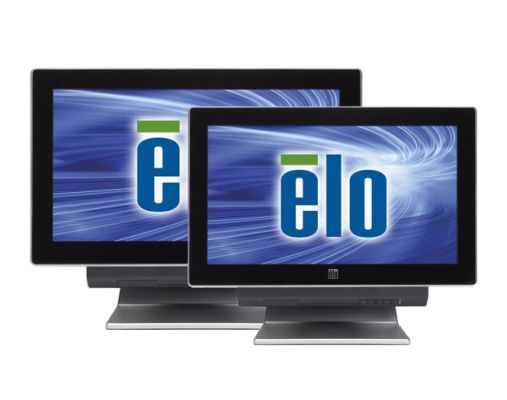

C-Series 19" Touchcomputer (Discontinued July 2016)
Como Comprar

Overview

The new C-Series 19-inch All-in-One touchcomputers continue to bring the same style, flexibility and functionality to high-end point-of-sale (POS), point-of-information (POI), retail and hospitality businesses as the previous versions. The ruggedized C-Series touchcomputers are available with your choice of industry leading Elo touchscreen technologies - IntelliTouch® Zero-Bezel surface acoustic wave (SAW) with single and dual touch technologies. The 19-inch AiO has been developed to meet the demanding needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, internet access sites and mobile kiosks.

The C-Series AiO platform offers large, bright LED HD displays in a wide-aspect ratio, making them an excellent choice for counter top product demonstrations, customer information systems and hospitality host and seating systems that depend on an accurate display of restaurant layouts to display their seating/floorspace. The C-Series is RoHS compliant, Energy Star 5.2 certified, and includes an enclosure design with an IPX1 spill-resistant rating, protecting the unit from liquid drips and spills.

The C-Series is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring high-performance processor configurations:

  • C2 Rev.B models (19C2) with fanless Intel Atom Dual- Core 1.86GHz N2800 processor
  • C3 Rev.B models (19C3) with fan-cooled 3rd Generation Intel Core-i3, 3.3GHz i3-3220 processor and HD2500 graphics
  • C5 models (19C5) with fan-cooled 3rd Generation Intel Core-i5 3.0GHz i5-3550S processor with HD2500 graphics
Other features
  • 19" 16:9 High Definition (HD) widescreen with high contrast LCD display - Provides a unique HD experience and interactivity
  • Clean and neat with only a single wire for power required in many applications - Improved aesthetics, ease of integration into any environment or application
  • Full range of standard connectivity ports to add functionality (USB, serial, etc) - Allowing for easy integration to any legacy or new install environments
  • Special USB ports around periphery of monitor provide the ability to integrate peripherals with no external wiring - Clean look, added security; no accidental disconnects
  • Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
  • "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Durability to withstand the rigors of use in public environments with mounting options that complement a variety of configurations
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
  • Energy Star 5.2 certified - Lower energy costs and better for the environment
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • 3-year warranty plus Elo quality and reliability - Satisfaction and peace of mind from 40 years of experience built into all products

Especificações

  • Técnico

    Modelos

    Fanless - C2 Rev.B Models
    AccuTouch (USB, Worldwide) - E591476
    AccuTouch (USB, Worldwide) - E437597
    AccuTouch (USB, Worldwide) - E284600
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E190551
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E973255
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E277227
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E094910

    Fan-cooled - C3 Rev.B Models
    AccuTouch (USB, Worldwide) - E460027
    AccuTouch (USB, Worldwide) - E245439
    AccuTouch (USB, Worldwide) - E961407
    IntelliTouch ZBl/IntelliTouch ZB DT (USB, Worldwide) - E605073
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E777002
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E797640

    Fan-cooled – C5 Models
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E037828
    IntelliTouch ZB/IntelliTouch ZB DT (USB, Worldwide) - E038028
    IntelliTouch ZBIntelliTouch ZB DT (USB, Worldwide) - E038221

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - toque único
    SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - dois toques

    Processador

    Fanless C2 Rev.B Models:
    Intel 1.86GHz Atom Dual-Core N2800 1MB L2 Cache
    1MB L2 Cache
    2.5 GT/s Direct Media Interface (DMI)

    Fan-cooled C3 Rev.B Models:
    Intel Core i3 3.3GHz i3-3220 3MB Intel® Smart Cache
    5 GT/s Direct Media Interface (DMI)

    Fan-cooled C5 Models:
    Intel Core-i5 3.0GHz i5-3550S 6MB Intel Smart Cache
    5 GT/s Direct Media Interface (DMI)

    BIOS

    AMI

    Memória (RAM)

    Fanless C2 Rev.B Models:
    2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
    (Expandable to 4GB maximum on 2 slots)

    Fan-cooled C3 Rev.B Models:
    2GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
    (Expandable to 8GB maximum on 2 slots)

    Fan-cooled C5 Models:
    4GB 1333MHz DDR3 SO-DIMM on 1 of 2 slots
    (Expandable to 8GB maximum on 2 slots)

    Drive de disco rígido

    320GB 2.5" 5400RPM Advanced Format (4K) SATA HDD

    Chipset

    Fanless C2 Rev.B Models:
    Intel NM10 Express

    Fan-cooled C3 Rev.B Models:
    Intel H61 Express

    Fan-cooled C5 Models:
    Intel H61 Express

    Tamanho da diagonal

    19'' diagonais, LCD (LED) TFT matriz ativa

    Botões de controle

    Controls (bottom): Power, brightness up, brightness down, volume up, volume down
    Security lockouts:Power and control buttons lock

    Proporção da tela

    16:9

    Área ativa

    16.1" x 9.1" / 409.8mm x 230.4mm

    Resolução

    1366 x 768 @ 60Hz

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Tempo de resposta (típico)

    5 msec

    Razão de contraste

    1000:1

    Ângulo de visão

    Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total

    Portas USB

    6 x USB 2.0 (4 on I/O, 2 x USB Front Access)
    Additional internal ports available for optional Elo peripherals

    Porta serial

    2 x NATIVE RS-232 Serial (standard)

    Porta Ethernet

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Porta para gaveta

    Built-in 12V/24V Cash Drawer Port (24V default; selectable via jumper)

    Vídeo de saída adicional

    1 x 2nd VGA out port

    Portas de áudio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Auto falantes

    Two 2W internal speakers

    sistema operacional

    Sem SO
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows 7 Professional Service Pack 1 (64-bit and 32-bit)
    Microsoft Windows 8.1 Industry Embedded Pro 64-bit

    Idiomas

    Windows 8.1 - 36 Grupos de idiomas
    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas

    Fonte de alimentação

    External 12VDC universal-type power supply brick
    AC input voltage: 100-240VAC
    Input frequency: 50-60Hz
    Maximum output power: 150W (Max draw: 170W)

    Tensão de entrada

    100-240VAC

    Consumo de energia (típico)

    C2 Rev.B Models:
    52W

    C3 Rev.B Models:
    74W

    C5 Models:
    74W

    Dimensões do Touchcomputer com o pedestal

    18.7" x 14.9" x 8.9" / 475mm x 380mm x 226mm

    Dimensões do Touchcomputer sem o pedestal

    18.7" x 11.9" x 3.8" / 475mm x 302mm x 98mm

    Dimensões da Caixa

    23.2" x 19.5" x 14.2" / 590mm x 495mm x 360mm

    Peso (com o pedestal)

    C2 Rev.B Models: 18.3 lbs / 8.3 kg
    C3 Rev.B Models: 18.3 lbs / 8.3 kg
    C5 Models: 18.3 lbs / 8.3 kg

    Peso (sem o pedestal)

    C2 Rev.B Models: 14.3 lbs / 6.5 kg
    C3 Rev.B Models: 14.3lbs / 6.5kg
    C5 Models: 14.3lbs / 6.5kg

    Peso embalado (com o pedestal)

    C2 Rev.B Models: 26.5 lbs / 12.0 kg
    C3 Rev.B Models: 26.7 lbs / 12.1 kg
    C5 Models: 26.7 lbs / 12.1 kg

    Temperatura de operação

    0°C to 35°C / 32°F to 95°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20% to 80%
    Storage: 5% to 95%

    Aprovações e declarações reguladoras

    UL/cUL
    FCC
    Germany TUV
    Europe CE
    Europe CB
    Mexico COC
    Argentina S-mark (power brick only)
    Australia C-Tick
    Japan VCCI
    IPX1
    Energy Star 5.2

    Relógio de tempo real

    Bateria de lítio-ion

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    100mm VESA mount or secure base to tabletop or desktop

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to sub-bezel (AccuTouch, iTouch Plus)
    Touchscreen sealed to LCD (all)
    IPX1

    Cabos de força

    North American and European power cables included

    Outras características

    Serviceable internal components
    Removable base with 100mm VESA mounting
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Opções de expansão

    Wireless Adapter (USB, 802.11b/g/n)

    Substituição da fonte de alimentação CC

    12V DC power brick, part number E806884, is available at additional cost

    Caneta stylus IntelliTouch opcional

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch ZB surface wave touch technology. Part number D82064-000, available at additional cost.

    Optional Accessories/Peripherals

    Second 320GB Hard Disk Drive (HDD) Kit
    Second HDD/SSD Mounting Bracket Kit Only
    2GB DDR3 SODIMM Memory Kit
    4GB DDR3 SODIMM Memory Kit
    Magnetic Stripe Reader (MSR)
    Customer Display (2x20 VFD)
    7" LCD Customer Display (with or without touch) *Requires Second Rear-Facing LCD Mouting Bracket Kit - Elo P/N: E750095
    Second Rear-Facing LCD Mounting Bracket Kit
    Biometric Fingerprint Reader (FPR)
    Wireless Adapter (USB, 802.11b/g/n)
    Additional/Replacement AC Power Cables: Additional/replacement AC power cables are available at additional cost as below:
    North America: Elo P/N: E042259
    Europe/Korea: Elo P/N: E690013
    China: Elo P/N: E030476
    United Kingdom: Elo P/N: E235317
    Taiwan: Elo P/N: E637694
    Argentina: Elo P/N: E98419
    Japan: Elo P/N: E109553
    Japan 3-pin to 2-pin adapter: Elo P/N: E351985

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
    Reads up to 3 tracks of information
    Bidirectional swipe reading
    Superior reading of high jitter, scratched, and worn MagStripe cards
    Reliable for over 1,000,000 card swipes
    Reads ISO7811, AAMVA, and most other card data formats
    PC software makes configuration changes easy
    Swipe speeds from 3 to 60 inches per second
    Interfaces: USB-IDTech-HID
    Fully supports USB 2.0
    Part Number: E545781
