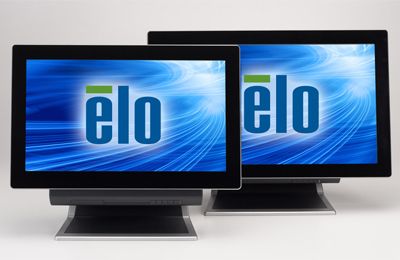

C-Series 19" and 22" Touchcomputer (Discontinued June 2013)
Como Comprar

Overview

The Elo C-Series Rev.A All-in-One touchcomputer platform leverages the same quality, performance, configurations and design as our popular B-Series 15” and 17” POS touchcomputer systems. The C-Series Rev.A offers bigger, brighter displays in a wide-aspect ratio. This makes the C-Series Rev.A an excellent choice for retail point-of-information, countertop product demonstration or customer information systems. In addition, hospitality host and seating systems that depend on an accurate display of restaurant layouts can utilize the wide screen of the C-Series Rev.A and the additional screen space available to display their seating/floorspace.

The C-Series Rev.A touchcomputers bring flexibility with your choice of configuration and connectivity, serviceability with easy access to key components, and a choice in processing power. In addition, an array of field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the C-Series Rev.A both versatile and powerful. It is designed with your future in mind, allowing easy field serviceability of all of the main components.

The C-Series Rev.A is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring two high-performance processor configurations:

  • Cool and Quiet C2  Fan-less Intel Atom Dual-Core 1.66 GHz
  • Performance Ultra C3  Fan-cooled Intel Core 2 Duo 3.0 GHz

The flexibility, serviceability and performance of the C-Series Rev.A are rare in commercial all-in-one touchcomputers. In a stylish, compact design, the C-Series Rev.A provides highly configurable, ruggedized touchcomputers, in two screen sizes: 19-inch and 22-inch, plus the choice of industry-leading Elo touch technologies. The C-Series Rev.A touchcomputer family has been developed to meet the demanding needs of a wide variety of hospitality and retail point-of-sale (POS), point-of-information (POI), point-of-service, point-of-presence, hospitality host station, kitchen systems, digital signage, customer loyalty, internet access sites, bedside entertainment and home automation and control.

Elo C-Series Rev.A touchcomputers are offered with your choice of the following operating systems (OS): Windows POSReady 2009, Windows 7 or no OS. Models with the IntelliTouch® Dual-touch product technology and Windows 7 support Windows 7 multi-touch functionality. Other touch product technologies with Windows 7 Operating System support single-finger gestures only.

Other features
  • 19" 16:9 High Definition widescreen with high contrast LCD display - Provides a never before seen HD interactivity POI solution
  • Single Image for POI 19" & 22" and POS 15" & 17" (B-Series) - Ease end point management and decrease Total Cost of Ownership (TCO); enable single image per location
  • Full range of standard connectivity ports plus expansion ports to add functionality (serial, USB, HDMI and PCI-E optional I/O) - Allowing for easy integration to any legacy or new install environment
  • Integrated peripherals with no external wiring - Easy installation, clean look, added security
  • Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
  • Supports industry standard low profile PCI-E (PCI Express) expansion cards - Outstanding configurability/customization options to meet all your connectivity needs
  • Second hard drive option for expanded storage or RAID configuration - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Stability to withstand the rigors of use in a public environment; mounting options to complement store layout and customer traffic
  • 3 year warranty plus Elo quality and reliability - Satisfaction and peace of mind from nearly 40 years of experience built into all products

Especificações

  • Técnico

    Modelos

    19" Displays:
    AccuTouch (Antiglare, Worldwide) - E274831
    AccuTouch (Antiglare, Worldwide) - E199240
    AccuTouch (Antiglare, Worldwide) - E258507
    IntelliTouch Dual Touch (Antiglare, Worldwide) - E022657
    IntelliTouch Dual Touch (Antiglare, Worldwide) - E119134
    IntelliTouch ZB (Antiglare, Worldwide) - E735103
    IntelliTouch ZB (Antiglare, Worldwide) - E629681
    IntelliTouch ZB (Antiglare, Worldwide) - E926530
    IntelliTouch ZB (Antiglare, Worldwide) - E764407

    22" Displays:
    AccuTouch (Antiglare, Worldwide) - E054037
    AccuTouch (Antiglare, Worldwide) - E702960
    AccuTouch (Antiglare, Worldwide) - E247514
    IntelliTouch Dual Touch (Antiglare, Worldwide) - E531206
    IntelliTouch Dual Touch (Antiglare, Worldwide) - E600229
    IntelliTouch ZB (Antiglare, Worldwide) - E266917
    IntelliTouch ZB (Antiglare, Worldwide) - E856702
    IntelliTouch ZB (Antiglare, Worldwide) - E496955
    IntelliTouch ZB (Antiglare, Worldwide) - E064208

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - 2 toques
    SAW Sem Bezel (IntelliTouch - Ondas de superfície acústica) - toque único

    Processador

    C2 Rev. A models:
    Intel 1.66GHz Atom Dual-Core D510
    1MB L2 Cache
    533MHz System Bus

    C3 Rev. A models:
    Intel 3.0GHz Core 2 Duo E8400
    6MB L2 Cache
    1333MHz System Bus

    BIOS

    AMI

    Memória (RAM)

    C2 Rev. A models:
    2GB Low-Profile DDR2 DIMM
    on 1 of 2 slots
    (Expandable to 4GB max1 on 2 slots)

    C3 Rev. A models:
    2GB Low-Profile DDR2 DIMM
    on 1 of 1 slot
    (Replaceable with 4GB max on 1 slot)

    Drive de disco rígido

    160GB 2.5” SATA HDD

    Chipset

    C2 Rev. A models:
    Intel NM10 Express

    C3 Rev. A models:
    Intel G41 Express

    Tamanho da diagonal

    19'' diagonais, LCD (LED) TFT matriz ativa

    Visualização na tela (OSD)

    Controls: menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
    Languages: English, French, Italian

    Proporção da tela

    16:9

    Área ativa

    19" models: 16.1" x 9.1" / 409.8mm x 230.4mm
    22" models: 18.8" x 10.6" / 476.6mm x 268.1mm

    Resolução

    19" models: 1366 x 768 @ 60Hz
    22" models: 1920 x 1080 @ 60Hz

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch ZB: 225 nits
    IntelliTouch Dual Touch: 225 nits

    Tempo de resposta (típico)

    5 msec

    Razão de contraste

    1000:1

    Ângulo de visão

    Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total

    Portas USB

    6 x USB 2.0 (4 on I/O, 2 x USB Front Access)
    Additional internal ports available for optional Elo peripherals

    Porta serial

    2 x USB-to-Serial RS-232 (standard)

    Porta Ethernet

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Porta para gaveta

    Optional cash drawer kit available (12V/24V default; selectable via jumper)

    Vídeo de saída adicional

    C2 Rev. A models: Optional 2nd VGA port expansion card
    C3 Rev. A models:Standard HDMI out / Optional 2nd VGA port expansion card

    Portas de áudio

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Auto falantes

    Two 2W internal speakers

    sistema operacional

    Sem SO
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Idiomas

    Windows 7 - 35 grupos de idiomas
    Windows POSReady 2009 – 32 Language groups

    Fonte de alimentação

    External 12VDC universal-type power supply brick
    Input frequency: 50-60Hz
    Max output power: 150W (Max. draw: 170W)

    Tensão de entrada

    100-240VAC

    Consumo de energia (típico)

    C2 Rev. A models: 19" models: 54W / 22" models: 54W
    C3 Rev. A models: 19" models: 113W / 22" models: 113W

    Dimensões do Touchcomputer com o pedestal

    19" models: 18.7" x 14.9" x 8.9" / 475mm x 380mm x 226mm
    22" models: 21.2" x 15.3" x 8.9" / 540mm x 389mm x 226mm

    Dimensões do Touchcomputer sem o pedestal

    19" models: 18.7" x 11.9" x 3.8" / 475mm x 302mm x 98mm
    22" models: 21.2" x 13.1" x 3.8" / 540mm x 333mm x 98mm

    Dimensões da Caixa

    19" models: 23.2" x 19.5" x 14.2" / 590mm x 495mm x 360mm
    22" models: 26.0" x 20.3" x 14.2" / 600mm x 516mm x 360mm

    Peso (com o pedestal)

    C2 Rev. A models: 19" models: 20.1 lbs / 9.1kg
    22" models: 22.2lbs / 10.1kg
    C3 Rev. A models: 19" models: 20.6lbs / 9.3 kg / 22" models: 22.7 lbs / 10.3 kg

    Peso (sem o pedestal)

    C2 Rev. A models: 19" models: 16.1 lbs / 7.3 kg
    22" models: 18.3lbs / 8.3kg
    C3 Rev. A models: 19" models: 16.6lbs (7.6kg) / 22" models: 18.7 lbs / 8.5 kg

    Peso (embalado)

    C2 Rev. A models: 19" models: 30.1 lbs / 13.6 kg
    22" models: 32.7lbs / 14.9kg
    C3 Rev. A models: 19" models: 30.9lbs / 14.0kg / 22" models: 33.0 lbs / 15.0 kg

    Temperatura de operação

    32°F to 95°F / 0°C to 35°C

    Temperatura de armazenamento

    -22°F to 140°F / -30°C to 60°C

    Umidade

    Operating: 20% to 80%
    Storage: 5% to 95%

    Aprovações e declarações reguladoras

    UL/cUL, FCC, TUV, CE, NOM COC, AR S-Mark, GOST-R, C-Tick, VCCI, CB, MPR II, 1PX1

    Relógio de tempo real

    Bateria de lítio-ion

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    100mm VESA mount or secure base to tabletop or desktop

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to bezel (IntelliTouch Plus)
    Touchscreen sealed to sub-bezel (AccuTouch, iTouch)
    Touchscreen sealed to LCD (all)
    IPX1

    Cabos de força

    North American and European power cables included

    Outras características

    Serviceable internal components
    Removable base with 100mm VESA mounting
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Opções de expansão

    Wireless Adapter (USB, 802.11b/g/n)
    Cash Drawer Port (12V/24V) Expansion Card
    Second VGA Port Elo expansion card
    Modem PCI-E Card
    Parallel Port PCI-E Card

    Substituição da fonte de alimentação CC

    12V DC power brick, part number E806884, is available at additional cost

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost

    Optional Accessories/Peripherals

    Second 160GB Hard Disk Drive (HDD)
    Second HDD/SSD Mounting Bracket Kit only
    2GB Low-Profile DDR2 Memory DIMM Kit
    4GB Low-Profile DDR2 Memory DIMM Kit
    Magnetic Stripe Reader - Elo P/N: E545781
    Customer Display (2x20 VFD) - Elo P/N: E879762
    Biometric Fingerprint Reader (FPR) - Elo P/N: E375206

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
    - Reads up to 3 tracks of information
    - Bidirectional swipe reading
    - Superior reading of high jitter, scratched, and worn

    MagStripe cards
    - Reliable for over 1,000,000 card swipes
    - Reads ISO7811, AAMVA, and most other card data formats
    - PC software makes configuration changes easy
    - Swipe speeds from 3 to 60 inches per second
    - Interfaces: USB-IDTech-HID
    - Fully supports USB 2.0
    - Part number: E545781
