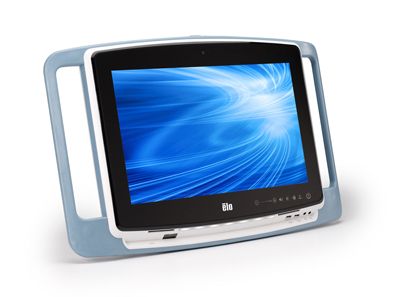

VuPoint 15" and 19" Touchcomputer (Discontinued May 2016)
Overview
VuPoint truly makes healthcare more connected. The integrated communications and computing platform is purpose-built for medical and healthcare environments designed to deliver patient-centric services such as entertainment, information and other services such as electronic medical records. It is a flexible, fully-featured system, with multiple options available to expand its usage and configurations. VuPoint offers a choice of two Intel processors – 1.8GHz Dual Core Atom D525 or 1.1GHz Celeron Dual Core 847E – and multiple connections as well as optional accessories for telephony handsets, and card readers. The fan-less touchcomputer is built to comply with technical standards for the safety, essential performance and effectiveness of medical electrical equipment. A drip-proof, easy-to-clean screen offers protection from drips, leaks, and spills.
Featuring a projected capacitive (PCAP) touchscreen for a fast, sensitive touch response, VuPoint’s modern design will blend in with the most sophisticated hospital surroundings. An AccuTouch five-wire zero-bezel resistive touchscreen option provides stable, drift-free operation. The sleek, stylish design is slim with an LED backlight for lower power consumption, yet rugged in construction for long-term durability. The easy-to-clean, sealed zero-bezel touchscreen has no gaps to trap dust and dirt, and the slim, light-weight touchcomputer has built-in handles to easily move the unit while attached to a mobile cart, swing arm, over a bed, or alongside a treatment chair.
VuPoint’s flexibility adapts for each healthcare application. Available in 15- and 19-inch wide-screen format, the near-patient applications of the M-Series VuPoint include in-patient hospitals and medical centers for bedside self-service menu-ordering, billing review, internet access, communication, educational services, or remote patient records access. The wide-screen display can be an advantage for out-patient treatment centers by delivering more room on the screen for patient record review and discussion of images and video. Long-term and elderly care facilities may also find attractive the video communications, monitoring and emergency alert options, while still leveraging the patient services and entertainment functionalities.
Overview
- Stylish, smart and convenient design - Slim LED backlight for reduced power consumption, recessed lighting and buttons for increased patient well-being and staff convenience, lightweight with soft built-in handles for easy handling at the bedside, on a cart or alongside a treatment chair
- Available with Projected Capacitive (PCAP) technology - Multiple touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements
- 15” and 19” AiO zero-bezel touchcomputer - Two sizes with seamless, edge-to-edge, sealed PCAP pure-glass touchscreen* is easy-to-clean and accommodates a wide variety of uses and configurations (*AccuTouch zero-bezel resistive also available upon request)
- Tested and built for stringent healthcare environments - Fan-less with IP21 for clean, quiet operation and protection from drips, leaks and spills and meets ANSI/AAMI ES60601-1 & IEC 60601-1 (3rd Edition) for Medical Electrical Equipment safety
- Two Intel processors: 1.8GHz Dual Core Atom D525 and 1.1GHz Celeron Dual Core 847E - Buy only the processing power necessary from a trusted source for integrated computing uses ranging from patient-centric services and multi-media to electronic medical records
- Multiple connections, and built-in peripherals include: 4 USB ports (2 internal, 2 external), 2 internal mini PCI-E slots, front facing dual headphone jack, microphone, barcode reader, magnetic stripe reader, and webcam. Additional options include: built-in RFID reader and phone handset. - Healthcare becomes more connected with an enhanced patient experience through VuPoint’s integrated communications and computing platform
- 3-year warranty - Customer satisfaction and peace of mind
Especificações
-
Técnico
Modelos
15" Displays:
Projected Capacitive (Antiglare) - E386515
19" Displays:
Projected Capacitive (Antiglare) - E584843Cor do Monitor
Preto
Tecnologia do Touch
PCAP (Capacitiva projetada) - até 4 toques
Processador
15":
Intel 1.8GHz Dual Core Atom D525
1MB L2 Cache
800MHz System Bus
19":
Intel 1.1GHz Celeron Dual Core 847E
2 MB Intel Smart Cache
1333MHz System BusBIOS
AMI
Memória (RAM)
4GB DDR3
SO DIMM 2GB on 2 of 2 slotsDrive de disco rígido
Capacity: 320 GB2
Interface Type: Serial ATA-300
Data Transfer Rate: 300 MBps
Spindle Speed: 5400 rpm
Buffer Size: 8 MBChipset
15":
Intel 82801HM
19":
Intel HM65 (Sandy Bridge)Tamanho da diagonal
15'' diagonais, LCD (LED) TFT matriz ativa
Proporção da tela
16:9
Área ativa
15" models: 13.5" x 7.6" / 344.2mm x 193.5mm
19" models: 16.1" x 9.1" / 409.8mm x 230.4mmResolução
1366 x 768 @ 60Hz
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 300 nits
PCAP: 275 nitsTempo de resposta (típico)
5 msec
Razão de contraste
500:1
Ângulo de visão
Horizontal: ±85° ou 170° total / Vertical: ±80° ou 160° total
Portas USB
2x USB 2.0 external front accessible; 2x USB 2.0 hidden/protected
Additional internal ports available for optional Elo peripheralsPorta Ethernet
1 x LAN RJ45 (Gigabit)
Wireless
WiFi WLan (802.11b/g/n)
Portas de áudio
Dual 3.5mm Headphone Microphone jacks, user accessible
3.5mm Audio line in hidden/protectedAuto falantes
Two 6W internal speakers
sistema operacional
Sem SO
Idiomas
Inglês (padrão), Francês, Alemão, Italiano, Espanhol, Chinês Simplificado, Chinês Tradicional
Fonte de alimentação
External 12VDC universal-type power supply brick
Maximum output power: 85W
DC Power cord length 5 MetersTensão de entrada
AC: 100-240 VAC 50-60 Hz
Consumo de energia (típico)
72W Max.
Dimensões do Touchcomputer sem o pedestal
15" model: 22.2” x 13.4” x 2.3” / 563.8mm x 340.4mm x 58.4mm
19" model: 24.8” x 15.1” x 2.3” / 629.9mm x 383.5mm x 58.4mmDimensões da Caixa
15" model: 25.5” x 17.9” x 5.9” / 647.7mm x 454.6mm x 149.8mm
19" model: 28.9” x 20.0” x 5.9” / 734.0mm x 508.0mm x 149.8mmPeso (sem embalagem)
15" model: 12.89 lbs / 5.85kg
19" model: 15.43 lbs / 7.0kgPeso (embalado)
15" model: 19.62 lbs / 8.9kg
19" model: 22.92 lbs / 10.4kgTemperatura de operação
0°C to 35°C / 32°F to 95°F
Temperatura de armazenamento
-30°C to 60°C / -22°F to 140°F
Umidade
Operating: 20% to 80%
Storage: 5% to 95%Aprovações e declarações reguladoras
UL/cUL, FCC, TUV, CE, CB, GOST-R, VCCI, IP21
Relógio de tempo real
Bateria de lítio-ion
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Opções de montagem
100mm VESA mount
Garantia
3 anos
Vedado
IP21
Cabos de força
North American and European power cables included
Outras características
Serviceable internal components
Opções de upgrade
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
Opções de expansão
USB telephone handset and arm kit
64 MB SSD Hard Drive Kit
USB TV Tuner Kit
3M DC Cable KitModelos de cabo de força por região para E-Series
América do Norte - Elo P/N: E042259
Optional Accessories/Peripherals
Magnetic Stripe Reader
RFID Reader
Barcode Reader
Smart Card Reader
Barcode Scanner
Webcam
USB telephone handset and arm kit - Elo P/N: E709063
64 MB SSD Hard Drive Kit - Elo P/N: E305246
USB TV Tuner Kit - Elo P/N: E177386
3M DC Cable Kit - Elo P/N: E175539Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port no external power is needed. The MSR features are:
Reads up to 3 tracks of information
Bidirectional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
Reliable for over 1,000,000 card swipes
Reads ISO7811, AAMVA, and most other card data formats
PC software makes configuration changes easy
Swipe speeds from 3 to 60 inches per second
Interfaces: USB-IDTech-HID
Fully supports USB 2.0
