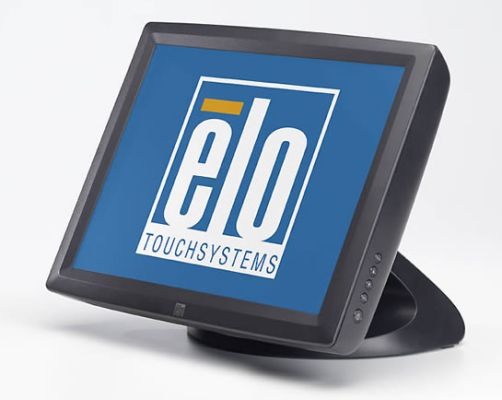

1522L 15" Touchscreen Monitor (Discontinued October 2012)
Como Comprar

Overview

The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, CarrollTouch Infrared, Surface Capacitive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.

Other features.
  • Long lasting product cycle – enclosure controlled by Elo specifications
  • Small integrated design
  • A touchmonitor that can function as a desktop or wall-mountable system
  • Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, and Surface Capacitive Technology
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Touchscreen sealed to resist dirt, dust and splashes
  • "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
  • Controls on the side rather than the front, plus lockout function for public use
  • Choice of short or tall monitor stand
  • Choice of gray or beige finish
  • Mounting holes on stand bottom for tabletop security
  • Stand removable, VESA mounting option
  • Worldwide agency approvals
  • Security lock receptacle
  • 3 year warranty

Especificações

  • Técnico

    Modelos

    AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E136451
    AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E407449
    AccuTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E993389
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E172222
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E317038
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E460428
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E869591
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E195812
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E337897
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E576670
    CarrollTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E592262
    IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E626377
    IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E664329
    IntelliTouch (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E889598

    Cor do Monitor

    Dark Gray or Beige

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
    Reconhecimento de Pulso Acústico - Single Touch
    CarrollTouch Infrared Technology

    Tamanho da diagonal

    15'' diagonais, LCD (LED) TFT matriz ativa

    Proporção da tela

    4:3

    Área ativa

    12.0" x 9.0" / 304mm x 228mm

    Resolução

    1024 x 768 at 60 Hz

    Outras resoluções suportadas

    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Ângulo de visão

    Horizontal: ±70° or 140° total / Vertical: ±60° or 120° total

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 230 nits
    CarrollTouch: 230 nits
    IntelliTouch: 230 nits

    Tempo de resposta (típico)

    12 msec

    Razão de contraste

    500:1

    Interface do touch

    USB: E136451, E407449, E993389, E172222, E317038, E460428, E869591, E195812, E337897, E576670, E592262, E626377, E664329, E889598

    Visualização na tela (OSD)

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Auto falantes

    Two watt/channel speakers located in display head

    Formato da entrada de vídeo

    Analog VGA

    Entrada do conector dos sinais de vídeo

    Mini D-Sub 15-Pin VGA type

    Consumo de energia (típico)

    30W

    Fonte de alimentação

    Internal AC, Optional external DC (power brick)

    Tensão de entrada

    AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

    Conector de entrada

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Frequência de entrada

    Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

    Dimensões do monitor (com suporte)

    14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
    Dimensions vary with stand type and position; see drawing for tall stand dimensions

    Dimensões da Caixa

    Short stand: 17.53" x 13.00" x 14.97" / 445mm x 330mm x 380mm
    Tall stand: 17.53" x 11.03" x 17.34" / 445mm x 280mm x 440mm

    Peso (com o pedestal)

    Short stand: 14.3 lbs / 6.5 kg
    Tall stand: 14.9 lbs / 6.8 kg

    Peso embalado (com o pedestal)

    Short stand: 19.6 lbs / 8.9 kg
    Tall stand: 20.2 lbs / 9.2 kg

    Temperatura de operação

    0°C to 40°C / 32°F to 104°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Vedado

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de suporte

    Tilt, removable, short or tall stand

    Opções de montagem

    75mm VESA mount

    Outras características

    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Garantia

    3 anos

    Aprovações e declarações reguladoras

    EMC: CE, C-Tick, FCC, VCCI (Class B)
    Safety: CB, CE, cULus, S (Argentina), TÜV T Mark

    Cabos de força

    North American and European AC power cables are included.

    For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.

    AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    Fonte de Alimentação Opcional

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Cabo de vídeo e touch

    All appropriate cables are included and are detachable.

    Periféricos opcionais

    Leitor de tarja magnética (Cinza escuro MSR) - Elo P/N: E560084
    Leitor de tarja magnética (Bege) - Elo P/N: E895934
