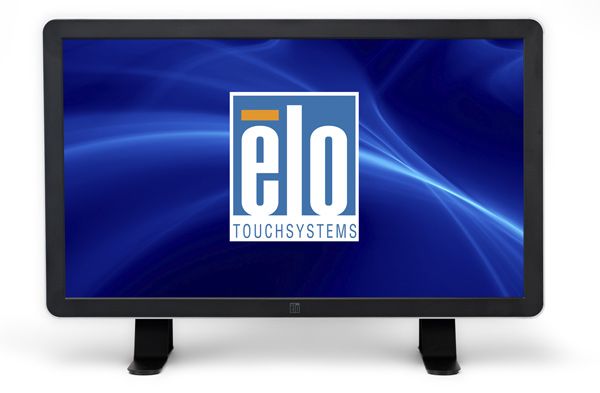

3200L 32" Interactive Digital Signage (Discontinued June 2013)
Overview
The 3200L IDS touch display is more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage – the power of touch.
The 3200L offers a unique interactive display designed to enhance the touch experience. For a sensitive, accurate touch response for two simultaneous touch locations, IntelliTouch® dual-touch surface wave product technology utilizes three axes of touch information and supports finger, gloved hand and soft stylus activation. Its pure-glass construction delivers excellent imagery with high light transmissions, not affected by changes in ambient light. Housed in a highly durable steel chassis for a long-life of reliable performance, the 3200L with either technology is an efficient display canvas for almost any commercial, public access application.
The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer displays, Elo touch solutions offer a longer life and a richer digital signage experience.
The IDS displays are also available in 42- and 46-inch, to fit a wide variety of configurations and uses and come in an attractively designed package well-suited for many business segments and applications.
The IDS family is also available with an optional Computer Module (reference Accessories tab) in three options, ECM1, ECM2 and ECM3, to support and deliver engaging and interactive personalized content.
Other features
- IntelliTouch dual-touch surface acoustic wave for recognition of two simultaneous touch locations
- Pure-glass display surface delivers excellent imagery with high light transmissions
- Touch is impervious to changes in ambient light
- Housed in a highly durable steel chassis for a long-life of reliable performance
- VESA mounting with optional stand
- Aspect ratio 16:9
- True High Definition (HD) 720p (1366 x 768)
- Seamless, field installable, computer module, docking integration
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
- Analog VGA and HDCP-capable HDMI 1.3, video
- Two 10W speakers
Especificações
-
Técnico
Modelos
IntelliTouch Dual-Touch (USB, Antiglare, Americas, Asia-Pacific, EMEA) - E994558
Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - 2 toques
Tamanho da diagonal
31,5'' diagonais, LCD (LED) TFT matriz ativa
Área ativa
27.5" x 15.4" / 698mm x 392mm
Proporção da tela
16:9
Resolução
1366 x 768
Outras resoluções suportadas
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1360x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 60HzÂngulo de visão
Horizontal: ±89° ou 178° total / Vertical: ±89° ou 178° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 450nits
IntelliTouch Dual-Touch: 405 nitsTempo de resposta (típico)
20 msec
Razão de contraste
3500:1
Interface do touch
USB: E994558
Visualização na tela (OSD)
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerPortas de E/S
COM1 and COM2 - Software specific; for future use
Formato da entrada de vídeo
Analog VGA and HDCP-capable HDMI 1.3 video
Entrada do conector dos sinais de vídeo
Female DE-15 for Analog VGA
HDMI Type A receptacle for HDMIEntrada do conector de áudio
3.5 mm TRS jack
Alcance do sinal de entrada de áudio
1 Vrms max. stereo signal (standard PC line out)
Conector de saída para fone de ouvido
3.5mm TRS jack
Sinal de saída do auscultador
Delivers 90mW of power into a 32 ohm stereo load
Auto falantes
Two 10W RMS speakers
Fonte de alimentação
Internal AC
Conector de entrada
AC: IEC 60320 C14
Tensão de entrada
AC: 100–240 VAC, 50/60Hz
Frequência de entrada
Horizontal: 32-80kHz / Vertical: 50-61Hz
Consumo de energia (típico)
Monitor only:
ON, max audio, 100V/60Hz: 111W
SLEEP, 100V/60Hz: 12W
OFF, 100V/60Hz: 11.5W
Monitor with ECM1 Computer Module:
S0 - ON, max audio, 100V/60Hz: 204W
S3 - STANDBY, 100V/60Hz: 17W
S5 - OFF, 100V/60Hz: 13.2W
Monitor with ECM2 Computer Module:
ON, max audio, 100V/60Hz (S0): 234W
S3 - STANDBY, 100V/60Hz: 17W
S5 - OFF, 100V/60Hz: 13.2WDimensões
31.4" x 19.2" x 5.4" / 797mm x 487mm x 136mm
Dimensões da Caixa
37.0" x 25.0" x 11.0" / 939mm x 635mm x 280mm
Peso (sem embalagem)
Without Computer Module - 46.3 lbs / 21.0 Kg
With Computer Module - 52.0 lbs / 23.6 KgPeso (embalado)
Without Computer Module - 68.3 lbs / 31.0 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20% - 80%
Storage: 10% - 90%
noncondensingOpções de montagem
VESA MIS-F, 400 x 200, Y, 6, 90
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Aprovações e declarações reguladoras
UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, NOM, Rusia & CIS GOST, International CB, BSMI, KC
Cabos de força
Cable Kit for replacement cables
EMEA: Elo p/n - E414311
Japan: Elo p/n - E545338
Asia-Pacific: Elo p/n - E914104
North America: Elo p/n - E998924Optional Accessories/Peripherals
IntelliTouch SAW Stylus Pen - Elo p/n: D82064-000
Computer Module: 2.2 GHz ECM1 with Windows XP - Elo p/n: E370690
Computer Module: 3.0 GHz ECM2 with Windows XP - Elo p/n: E268268
Computer Module: 2.2 GHz ECM1 without OS - Elo p/n: E587119
Computer Module: 3.0 GHz ECM2 without OS - Elo p/n: E057911
Computer Module: 2.2 GHz ECM1 with Windows - Elo p/n: E077771
Computer Module: 3.0 GHz ECM2 with Windows - Elo p/n: E588755
Computer Module: 2.5 GHz ECM3 with Windows - Elo p/n: E518070
Computer Module: 2.5 GHz ECM3 with no OS - Elo p/n: E694079
Webcam - Elo p/n: E828885
Webcam - Elo p/n: E574975
OSD Control Box - Elo p/n: E622897
4GB RAM Kit - Elo p/n: E331130
Optional stand - Elo p/n: E953908Acessórios opcionais do IDS
i3 3,4 GHz ECMG2C - Windows 10 para IDS 02 Series - Elo P/N: E991367
