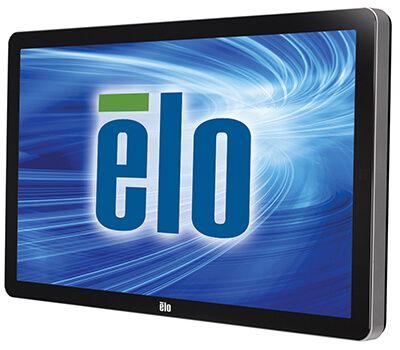

4600L 46" Touchscreen Signage (Discontinued August 2013)
Overview
The 4600L IDS touch display is more than a media player and more than a consumer display. IDS touch displays enable increased customer engagement and metrics for out-of-home environments by adding an exciting new dimension to traditional broadcast digital signage - the power of touch. The 4600L offers a unique interactive display designed to enhance the touch experience. The 46-inch interactive, large-format display features a choice of industry-leading touch technologies that optimizes the touch experience for a particular usage. Housed in a highly durable steel chassis for a long-life of reliable performance, the 4600L with any of the available touchscreen technologies is an efficient display canvas for almost any commercial, public access application.
For a light, no pressure multi-touch (up to 4 touch points) experience on a pure-glass surface, optical touchscreen technology provides a crystal clear image and recognizes touch from any input device, such as a finger, gloved finger, pen, or stylus. For a sensitive, accurate touch response IntelliTouch® surface wave product technology utilizes pure-glass construction to deliver excellent imagery with high light transmissions, not affected by changes in ambient light, and supports finger, gloved hand and soft stylus activation.
The large-format, professional displays are not only attractive, but rugged enough to withstand the constant interactivity inherent in public access venues, such as retail, self-service, hospitality, transportation, education, and healthcare. Built to last in public access environments, unlike typical consumer displays, Elo touch solutions offer a longer life and a richer digital signage experience.
The IDS displays are also available in 32- and 42-inch, to fit a wide variety of configurations and uses and come in an attractively designed package well-suited for many business segments and applications. The IDS family is also available with an optional Computer Module (reference Accessories tab) in three options, ECM1, ECM2 and ECM3 to support and deliver engaging and interactive personalized content.
Other features.
- Available with IntelliTouch surface acoustic wave reliable single touch by finger or soft stylus and optical touchscreen technology for a sensitive multi-touch response with any input device.
- Pure-glass display surface delivers crystal clear images
- Housed in a highly durable steel chassis for a long-life of reliable performance
- VESA mounting with optional stand
- Aspect ratio 16:9
- True High Definition (HD) 1080p (1920 x 1080)
- Seamless, field installable, computer module, docking integration
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
- Analog VGA and HDCP-capable HDMI 1.3, video
- Two 10W speakers
Especificações
-
Técnico
Modelos
IntelliTouch (USB, Clear, Americas, Asia-Pacific, EMEA) - E960985
Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E536712Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
Optical - Up to 6 TouchTamanho da diagonal
46'' diagonais, LCD (LED) TFT matriz ativa
Área ativa
40.1" x 22.5" / 1018 mm x 573 mm
Proporção da tela
16:9
Resolução
1920 x 1080
Outras resoluções suportadas
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1360x768 60Hz
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 50, 60HzÂngulo de visão
Horizontal: ±89° ou 178° total / Vertical: ±89° ou 178° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 450 nits
IntelliTouch: 405 nits
Optical: 405 nitsTempo de resposta (típico)
8 msec
Razão de contraste
3000:1
Interface do touch
USB
Visualização na tela (OSD)
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerPortas de E/S
COM1 and COM2 - Software specific; for future use
Formato da entrada de vídeo
Analog VGA and HDCP-capable HDMI 1.3 video
Entrada do conector dos sinais de vídeo
Female DE-15 for Analog VGA
HDMI Type A receptacle for HDMIEntrada do conector de áudio
3.5 mm TRS jack
Alcance do sinal de entrada de áudio
1 Vrms max. stereo signal (standard PC line out)
Conector de saída para fone de ouvido
3.5 mm TRS jack
Sinal de saída do auscultador
Delivers 90 mW of power into a 32-ohm stereo load
Auto falantes
Two 10W RMS speakers
Fonte de alimentação
Type: Internal AC
Conector de entrada
IEC 60320 C14
Tensão de entrada
100 - 240 VAC, 50 / 60Hz
Frequência de entrada
Horizontal: 32 - 80 kHz / Vertical: 48 - 62 Hz
Consumo de energia (típico)
Monitor only (at 100V/60Hz):
ON, max audio: 234W
SLEEP: 12.5W
OFF: 3.4W
Monitor with ECM1 Computer Module (at 100V/60Hz):
S0 - ON, max audio: 333W
S3 - STANDBY: 16W
S5 - OFF: 13W
Monitor with ECM2 Computer Module (at 100V/60Hz):
S0 - ON, max audio: 363W
S3 - STANDBY: 15W
S5 - OFF: 13WDimensões
44.1" x 26.1" x 5.3" / 1120 mm x 664 mm x 135 mm
Dimensões da Caixa
51.3" x 34.0" x 13.0" / 1304 mm x 855 mm x 330 mm
Peso (sem embalagem)
without computer module: 82.0 lbs / 37.2 kg; with computer module: 87.7 lbs / 39.8 kg
Peso (embalado)
without computer module: 110.2 lbs / 50.0 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 50°C / -4°F to 122°F
Umidade
Operating: 20%-80%
Storage: 10%-90%
noncondensingOpções de montagem
VESA MIS-F, 600 x 400, Y, 6, 90
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI
Optional Accessories/Peripherals
IntelliTouch SAW Stylus pen - Elo P/N: D82064-000
Computer Module - 2.2 GHz ECM1 Windows XP - Elo P/N: E370690
Computer Module - 3.0 GHz ECM2 Windows XP - Elo P/N: E268268
Computer Module - 2.2 GHz ECM1 NO OS - Elo P/N: E587119
Computer Module - 3.0 GHz ECM2 NO OS - Elo P/N: E057911
Computer Module - 2.2 GHz ECM1 Windows 7 - Elo P/N: E077771
Computer Module - 3.0 GHz ECM2 Windows 7 - Elo P/N: E588755
Computer Module - 2.5 GHz ECM3 Windows 7 - Elo P/N: E518070
Computer Module - 2.5 GHz ECM3 NO OS - Elo P/N: E694079
Webcam - Elo P/N: E828885 and Elo P/N: E574975
Replacement Cable Kit - EMEA - Elo P/N: E414311
Replacement Cable Kit - Japan - Elo P/N: E545338
Replacement Cable Kit - Asia-Pacific - Elo P/N: E914104
Replacement Cable Kit - North America - Elo P/N: E998924
OSD Control Box - Elo P/N: E622897
Wired OSD Remote - Elo P/N: E483757
4GB RAM Kit - Elo P/N: E331130
Stand - Elo P/N: E448725Acessórios opcionais do IDS
OSD remoto com fio - Elo P/N: E483757
