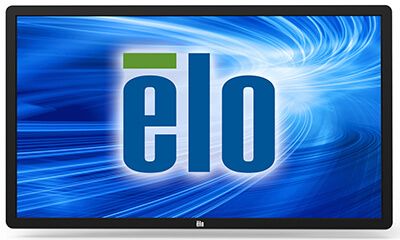

5500L 55" Interactive Digital Signage (Discontinued June 2015)
Overview
The thin profile Elo 5500L Interactive Digital Signage (IDS) display combines a precision touchscreen with a professional-grade, large format LCD panel. The 5500L offers System Integrator, Value-Added Resellers and Software Developers a high-performance touch solution for interactive digital displays in high traffic environments.
The 55" 5500L is part of a family of large-format touch displays which bring interactivity to digital signage. The 5500L features a choice of two sensitive, accurate touchscreen technologies, each with pure-glass construction for visual clarity: Optical touchscreen provides multi-touch (up to 4 touches) and gesture support (Microsoft® Windows 7 required); IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen stands out for consistent reliability
The display is housed in a highly durable steel chassis for a long life of reliable and durable performance in almost any public access location. Optical multi-touch touchscreen technology recognizes touch with a finger, gloved hand, stylus, card or pen while the IntelliTouch touchscreen recognizes touch by a finger, gloved hand, or virtually any soft stylus. With these touchscreen technologies, the result is an efficient display canvas for almost any commercial application. In addition, the 5500L sports a thinner profile (4.8") and an LED-based LCD panel which reduces power consumption and heat output.
Optional high performance computer modules are well-suited for running interactive media and are available with a choice of three processing models: ECM1 with the Intel Celeron Dual-Core 2.2GHz, ECM2 with the Intel Core 2 Duo 3.0GHz and ECM3 with the Intel Core i5 2.5GHz. The computer modules are field-installable, easily sliding into a dedicated bay behind the touch display and locking into place with two thumbscrews. These modules make the 5500L a reliable platform that is inter-operable with content management servers and support optimal partitioning of locally cached and network stored content.
Other features.
- Pure-glass display surface delivers crystal clear images
- VESA mounting with optional stand
- Aspect ratio 16:9
- True High Definition (HD) 1080p (1920 x 1080)
- Seamless, field installable, computer module, docking integration
- Heat strengthened glass per ASTM C1048; UL60950 ball drop test compliant
- Analog VGA and HDCP-capable HDMI 1.3, video
- Two 10W speakers
- Housed in a highly durable steel chassis for a long-life of reliable performance
Especificações
-
Técnico
Modelos
IntelliTouch (USB, Clear, Americas, Asia-Pacific, EMEA) - E053414
Optical (USB, Clear, Americas, Asia-Pacific, EMEA) - E891542Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
Optical - Up to 6 TouchTamanho da diagonal
54,6'' diagonais, LCD (LED) TFT matriz ativa
Área ativa
47.6" x 26.8" / 1210 mm x 680 mm
Proporção da tela
16:9
Resolução
1920 x 1080
Outras resoluções suportadas
640x480 60Hz
720x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1360x768 60Hz (does not scale; image is centered on panel and the remaining active area is filled with black)
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 60HzÂngulo de visão
Horizontal: ±89° ou 178° total / Vertical: ±89° ou 178° total
Número de cores
1073.7 milhões
Brilho (típico)
LCD Panel: 450 nits
IntelliTouch: 405 nits
Optical: 405 nitsTempo de resposta (típico)
6.5 msec
Razão de contraste
4000:1
Interface do touch
USB
Visualização na tela (OSD)
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerPortas de E/S
COM1 and COM2 - Software specific; for future use
Formato da entrada de vídeo
Analog VGA and HDCP-capable HDMI 1.3 video
Entrada do conector dos sinais de vídeo
Female DE-15 for Analog VGA
HDMI Type A receptacle for HDMIEntrada do conector de áudio
3.5 mm TRS jack
Alcance do sinal de entrada de áudio
1 Vrms max. stereo signal (standard PC line out)
Conector de saída para fone de ouvido
3.5 mm TRS jack
Sinal de saída do auscultador
Delivers 90 mW of power into a 32-ohm stereo load
Auto falantes
Two 10W RMS speakers
Fonte de alimentação
Type: Internal AC
Conector de entrada
IEC 60320 C14
Tensão de entrada
100 - 240 VAC, 50 / 60 Hz
Frequência de entrada
Horizontal: 32 - 80 kHz / Vertical: 48 - 62 Hz
Consumo de energia (típico)
Monitor only (at 100V/60Hz):
ON, max audio: 145W; SLEEP: 15W; OFF: 3.5W
Monitor with ECM1 Computer Module (at 100V/60Hz):
S0 – ON, max audio
100% CPU load: 238W; S3 – STANDBY: 17W; S5 – OFF: 13.2W
Monitor with ECM2 Computer Module (at 100V/60Hz):
S0 - ON, max audio
100% CPU load: 268W; S3 – STANDBY: 17W; S5 – OFF: 13.2WDimensões
50.8" x 30.0" x 4.8" / 1290 mm x 762 mm x 122 mm
Dimensões da Caixa
57.1" x 38.2" x 14.2" / 1450 mm x 970 mm x 360 mm
Peso (sem embalagem)
Without computer module: 88.7 lbs / 40.3 kg
With computer module: 94.4 lbs / 42.9 kgPeso (embalado)
Without computer module: 119.5 lbs / 54.3 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 50°C / -4°F to 122°F
Umidade
Operating: 20-80%
Storage: 10-90%
noncondensingOpções de montagem
VESA MIS-F, 600 x 400, Y, 6, 90
MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI
Optional Accessories/Peripherals
IntelliTouch SAW Stylus pen - Elo P/N: D82064-000
Computer Module - 2.2 GHz ECM1 Windows XP - Elo P/N: E370690
Computer Module - 3.0 GHz ECM2 Windows XP - Elo P/N: E268268
Computer Module - 2.2 GHz ECM1 NO OS - Elo P/N: E587119
Computer Module - 3.0 GHz ECM2 NO OS - Elo P/N: E057911
Computer Module - 2.2 GHz ECM1 Windows 7 - Elo P/N: E077771
Computer Module - 3.0 GHz ECM2 Windows 7 - Elo P/N: E588755
Computer Module - 2.5 GHz ECM3 Windows 7 - Elo P/N: E518070
Computer Module - 2.5 GHz ECM3 NO OS - Elo P/N: E694079
Replacement Cable Kit - EMEA: Elo P/N: E414311
Replacement Cable Kit - Japan: Elo P/N: E545338
Replacement Cable Kit - Asia-Pacific: Elo P/N: E914104
Replacement Cable Kit - North America: Elo P/N: E998924
OSD Control Box - Elo P/N: E622897
4GB RAM Kit - Elo P/N: E331130
Webcam - Elo P/N: E828885 and Elo P/N: E574975
Stand - Elo P/N: E448725.
